InfluxDB 2.0

Introducing the Next-Generation InfluxDB 2.0 Platform mentions that InfluxDB 2.0 will be able to scrape Prometheus exporters. Get started with InfluxDB provides instructions for running an alpha version of the new software using Docker:
docker run --name influxdb -p 9999:9999 quay.io/influxdb/influxdb:2.0.0-alpha
Prometheus exporter describes an application that runs on the sFlow-RT analytics platform that converts real-time streaming telemetry from industry standard sFlow agents. Host, Docker, Swarm and Kubernetes monitoring describes how to deploy agents on popular container orchestration platforms.
The screen capture above shows three scrapers configured in InfluxDB 2.0:
  1. sflow-rt-analyzer,
    URL: http://10.0.0.70:8008/app/prometheus/scripts/export.js/analyzer/txt
  2. sflow-rt-dump,
    URL: http://10.0.0.70:8008/app/prometheus/scripts/export.js/dump/ALL/ALL/txt
  3. sflow-rt-flow-src-dst,
    URL: http://10.0.0.70:8008/app/prometheus/scripts/export.js/flows/ALL/txt?metric=flow_src_dst_bps&key=ipsource,ipdestination&value=bytes&aggMode=max&maxFlows=100&minValue=1000&scale=8
The first collects metrics about the performance of the sFlow-RT analytics engine, the second, all the metrics exported by the sFlow agents, and the third, is a flow metric (see Flow metrics with Prometheus and Grafana).
InfluxDB 2.0 now includes the data exploration and dashboard building capabilities that were previously in the separate Chronograf application. The screen capture above shows a simple chart trending ifinoctets across a number of switch ports.

Note: There are a number of articles on this blog that demonstrate how to push metrics from sFlow-RT into InfluxDB 1.0 using its REST API. The ability to scrape metrics from a Prometheus exporter simplifies the integration.

Flow metrics with Prometheus and Grafana

The Grafana dashboard above shows real-time network traffic flow metrics. This article describes how to define and collect flow metrics using the Prometheus time series database and build Grafana dashboards using those metrics.
Prometheus exporter describes an application that runs on the sFlow-RT analytics platform that converts real-time streaming telemetry from industry standard sFlow agents. Host, Docker, Swarm and Kubernetes monitoring describes how to deploy agents on popular container orchestration platforms.

The latest version of the Prometheus exporter application adds flow export.
global:
scrape_interval: 15s
evaluation_interval: 15s

rule_files:
# - "first.rules"
# - "second.rules"

scrape_configs:
- job_name: 'sflow-rt-metrics'
metrics_path: /app/prometheus/scripts/export.js/dump/ALL/ALL/txt
static_configs:
- targets: ['10.0.0.70:8008']
- job_name: 'sflow-rt-src-dst-bps'
metrics_path: /app/prometheus/scripts/export.js/flows/ALL/txt
static_configs:
- targets: ['10.0.0.70:8008']
params:
metric: ['ip_src_dst_bps']
key: ['ipsource','ipdestination']
label: ['src','dst']
value: ['bytes']
scale: ['8']
minValue: ['1000']
maxFlows: ['100']
- job_name: 'sflow-rt-countries-bps'
metrics_path: /app/prometheus/scripts/export.js/flows/ALL/txt
static_configs:
- targets: ['10.0.0.70:8008']
params:
metric: ['ip_countries_bps']
key: ['null:[country:ipsource]:unknown','null:[country:ipdestination]:unknown']
label: ['src','dst']
value: ['bytes']
scale: ['8']
aggMode: ['sum']
minValue: ['1000']
maxFlows: ['100']
The above prometheus.yml file extends the previous example to add two additional scrape jobs, sflow-rt-src-dst-bps and sflow-rt-countries-bps, that return flow metrics. Defining flows describes the attributes and settings available to Continue reading

Host, Docker, Swarm and Kubernetes monitoring

The open source Host sFlow agent incorporates technologies that address the challenges of microservice monitoring; leveraging recent enhancements to Berkeley Packet Filter (BPF) in the Linux kernel to randomly sample packets, and  Asynchronous Docker metrics to track rapidly changing workloads. The continuous stream of real-time telemetry from all compute nodes, transported using the industry standard sFlow protocol, provides comprehensive real-time cluster-wide visibility into all services and the traffic flowing between them.

The Host sFlow agent is available as pre-packaged rpm/deb files that can be downloaded and installed on each node in a cluster.
sflow {
collector { ip=10.0.0.70 }
docker { }
pcap { dev=docker0 }
pcap { dev=docker_gwbridge }
}
The above /etc/hsflowd.conf file, see Configuring Host sFlow for Linux via /etc/hsflowd.conf, enables the docker {} and pcap {} modules for detailed visibility into container metrics and network traffic flows, and streams telemetry to an sFlow collector (10.0.0.70). The configuration is the same for every node making it simple to install and configure Host sFlow on all nodes using orchestration software such as Puppet, Chef, Ansible, etc.

The agent is also available as the pre-build sflow/host-sflow image, Continue reading

Packet analysis using Docker

Why use sFlow for packet analysis? To rephrase the Heineken slogan, sFlow reaches the parts of the network that other technologies cannot reach. Industry standard sFlow is widely supported by switch vendors, embedding wire-speed packet monitoring throughout the network. With sFlow, any link or group of links can be remotely monitored. The alternative approach of physically attaching a probe to a SPAN/Mirror port is becoming much less feasible with increasing network sizes (10's of thousands of switch ports) and link speeds (10, 100, and 400 Gigabits). Using sFlow for packet capture doesn't replace traditional packet analysis, instead sFlow extends the capabilities of existing packet capture tools into the high speed switched network.

This article describes the sflow/tcpdump  and sflow/tshark Docker images, which provide a convenient way to analyze packets captured using sFlow.

Run the following command to analyze packets using tcpdump:
$ docker run -p 6343:6343/udp -p 8008:8008 sflow/tcpdump

19:06:42.000000 ARP, Reply 10.0.0.254 is-at c0:ea:e4:89:b0:98 (oui Unknown), length 64
19:06:42.000000 IP 10.0.0.236.548 > 10.0.0.70.61719: Flags [P.], seq 3380015689:3380015713, ack 515038158, win 41992, options [nop,nop,TS val 1720029042 ecr 904769627], length 24
19:06:42.000000 Continue reading

Running sflowtool using Docker

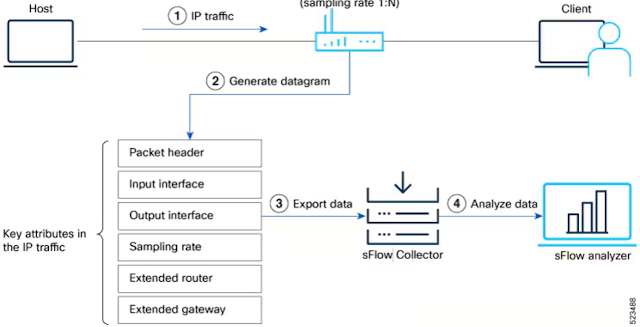

The sflowtool command line utility is used to convert standard sFlow records into a variety of different formats. While there are a large number of native sFlow analysis applications, familiarity with sflowtool is worthwhile since it provides a simple way to verify receipt of sFlow, understand the contents of the sFlow telemetry stream, and build simple applications through custom scripting.

The sflow/sflowtool Docker image provides a simple way to run sflowtool. Run the following command to print the contents of sFlow packets:
$ docker run -p 6343:6343/udp sflow/sflowtool
startDatagram =================================
datagramSourceIP 10.0.0.111
datagramSize 144
unixSecondsUTC 1321922602
datagramVersion 5
agentSubId 0
agent 10.0.0.20
packetSequenceNo 3535127
sysUpTime 270660704
samplesInPacket 1
startSample ----------------------
sampleType_tag 0:2
sampleType COUNTERSSAMPLE
sampleSequenceNo 228282
sourceId 0:14
counterBlock_tag 0:1
ifIndex 14
networkType 6
ifSpeed 100000000
ifDirection 0
ifStatus 3
ifInOctets 4839078
ifInUcastPkts 15205
ifInMulticastPkts 0
ifInBroadcastPkts 4294967295
ifInDiscards 0
ifInErrors 0
ifInUnknownProtos 4294967295
ifOutOctets 149581962744
ifOutUcastPkts 158884229
ifOutMulticastPkts 4294967295
ifOutBroadcastPkts 4294967295
ifOutDiscards 101
ifOutErrors 0
ifPromiscuousMode 0
endSample ----------------------
endDatagram =================================
The -g option flattens the output so that it is more easily filtered using grep:
$ docker run -p 6343:6343/udp sflow/sflowtool -g | grep ifInOctets
2019-09-03T22:37:21+0000 10.0.0.231 Continue reading

Forwarding using sFlow-RT

The diagrams show different two different configurations for sFlow monitoring:
  1. Without Forwarding Each sFlow agent is configured to stream sFlow telemetry to each of the analysis applications. This configuration is appropriate when a small number of applications is being used to continuously monitor performance. However, the overhead on the network and agents increases as additional analyzers are added. Often it is not possible to increase the number of analyzers since many embedded sFlow agents have limited resources and only support a small number of sFlow streams. In addition, the complexity of configuring each agent to add or remove an analysis application can be significant since agents may reside in Ethernet switches, routers, servers, hypervisors and applications on many different platforms from a variety of vendors.
  2. With Forwarding In this case all the agents are configured to send sFlow to a forwarding module which resends the data to the analysis applications. In this case analyzers can be added and removed simply by reconfiguring the forwarder without any changes required to the agent configurations.
There are many variations between these two extremes. Typically there will be one or two analyzers used for continuous monitoring and additional tools, like Wireshark, might be deployed Continue reading

sFlow-RT 3.0 released

The sFlow-RT 3.0 release has a simplified user interface that focusses on metrics needed to manage the performance of the sFlow-RT analytics software and installed applications.

Applications are available that replace features from the previous 2.3 release. The following instructions show how to install sFlow-RT 3.0 along with basic data exploration applications.

On a system with Java 1.8+ installed:
wget https://inmon.com/products/sFlow-RT/sflow-rt.tar.gz
tar -xvzf sflow-rt.tar.gz
./sflow-rt/get-app.sh sflow-rt flow-trend
./sflow-rt/get-app.sh sflow-rt browse-metrics
./sflow-rt/start.sh
On a system with Docker installed:
mkdir app
docker run -v $PWD/app:/sflow-rt/app --entrypoint /sflow-rt/get-app.sh sflow/sflow-rt sflow-rt flow-trend
docker run -v $PWD/app:/sflow-rt/app --entrypoint /sflow-rt/get-app.sh sflow/sflow-rt sflow-rt browse-metrics
docker run -v $PWD/app:/sflow-rt/app -p 6343:6343/udp -p 8008:8008 sflow/sflow-rt
The product user interface can be accessed on port 8008. The Status page, shown at the top of this article, displays key metrics about the performance of the software.
The Apps tab lists the two applications we installed, browse-metrics and flow-trend, and the green color of the buttons indicates both applications are healthy.

Click on the flow-trend button to open the application and trend traffic flows in real-time. The RESTflow article describes the flow analytics capabilities of sFlow-RT in Continue reading

Arista BGP FlowSpec


The video of a talk by Peter Lundqvist from DKNOG9 describes BGP FlowSpec, use cases, and details of Arista's implementation.

FlowSpec for real-time control and sFlow telemetry for real-time visibility is a powerful combination that can be used to automate DDoS mitigation and traffic engineering. The article, Real-time DDoS mitigation using sFlow and BGP FlowSpec, gives an example using the sFlow-RT analytics software.

EOS 4.22 includes support for BGP FlowSpec. This article uses a virtual machine running vEOS-4.22 to demonstrate how to configure FlowSpec and sFlow so that the switch can be controlled by an sFlow-RT application (such as the DDoS mitigation application referenced earlier).

The following output shows the EOS configuration statements related to sFlow and FlowSpec:
!
service routing protocols model multi-agent
!
sflow sample 16384
sflow polling-interval 30
sflow destination 10.0.0.70
sflow run
!
interface Ethernet1
flow-spec ipv4 ipv6
!
interface Management1
ip address 10.0.0.96/24
!
ip routing
!
router bgp 65096
router-id 10.0.0.96
neighbor 10.0.0.70 remote-as 65070
neighbor 10.0.0.70 transport remote-port 1179
neighbor 10.0.0.70 send-community extended
neighbor 10.0.0.70 maximum-routes 12000
!
address-family flow-spec ipv4
neighbor 10.0.0.70 Continue reading

Mininet flow analytics with custom scripts

Mininet flow analytics describes how to use the sflow.py helper script that ships with the sFlow-RT analytics engine to enable sFlow telemetry, e.g.
sudo mn --custom sflow-rt/extras/sflow.py --link tc,bw=10 \
--topo tree,depth=2,fanout=2
Mininet, ONOS, and segment routing provides an example using a Custom Topology, e.g.
sudo env ONOS=10.0.0.73 mn --custom sr.py,sflow-rt/extras/sflow.py \
--link tc,bw=10 --topo=sr '--controller=remote,ip=$ONOS,port=6653'
This article describes how to incorporate sFlow monitoring in a fully custom Mininet script. Consider the following simpletest.py script based on Working with Mininet:
#!/usr/bin/python

from mininet.topo import Topo
from mininet.net import Mininet
from mininet.util import dumpNodeConnections
from mininet.log import setLogLevel

class SingleSwitchTopo(Topo):
"Single switch connected to n hosts."
def build(self, n=2):
switch = self.addSwitch('s1')
# Python's range(N) generates 0..N-1
for h in range(n):
host = self.addHost('h%s' % (h + 1))
self.addLink(host, switch)

def simpleTest():
"Create and test a simple network"
topo = SingleSwitchTopo(n=4)
net = Mininet(topo)
net.start()
print "Dumping host connections"
dumpNodeConnections(net.hosts)
print "Testing bandwidth between h1 and h4"
h1, h4 = net.get( 'h1', 'h4' )
net.iperf( (h1, h4) )
net.stop()

if __name__ == '__main__':
# Continue reading

Secure forwarding of sFlow using ssh

Typically sFlow datagrams are sent unencrypted from agents embedded in switches and routers to a local collector/analyzer. Sending sFlow datagrams over the management VLAN or out of band management network generally provides adequate isolation and security within the site. Inter-site traffic within an organization is typically carried over a virtual private network (VPN) which encrypts the data and protects it from eavesdropping.

This article describes a simple method of carrying sFlow datagrams over an encrypted ssh connection which can be useful in situations where a VPN is not available, for example, sending sFlow to an analyzer in the public cloud, or to an external consultant.

The diagram shows the elements of the solution. A collector on the site receives sFlow datagrams from the network devices and uses the sflow_fwd.py script to convert the datagrams into line delimited hexadecimal strings that are sent over an ssh connection to another instance of sflow_fwd.py running on the analyzer that converts the hexadecimal strings back to sFlow datagrams.

The following sflow_fwd.py Python script accomplishes the task:
#!/usr/bin/python

import socket
import sys
import argparse

parser = argparse.ArgumentParser(description='Serialize/deserialize sFlow')
parser.add_argument('-c', '--collector', default='')
parser.add_argument('-s', '--server')
parser.add_argument('-p', '--port', type=int, default=6343)
Continue reading

Prometheus exporter

Prometheus is an open source time series database optimized to collect large numbers of metrics from cloud infrastructure. This article will explore how industry standard sFlow telemetry streaming supported by network devices (Arista, Aruba, Cisco, Dell, Huawei, Juniper, etc.) and Host sFlow agents (Linux, Windows, FreeBSD, AIX, Solaris, Docker, Systemd, Hyper-V, KVM, Nutanix AHV, Xen) can be integrated with Prometheus to extend visibility into the network.

The diagram above shows the elements of the solution: sFlow telemetry streams from hosts and switches to an instance of sFlow-RT. The sFlow-RT analytics software converts the raw measurements into metrics that are accessible through a REST API. The sflow-rt/prometheus application extends the REST API to include native Prometheus exporter functionality allowing Prometheus to retrieve metrics. Prometheus stores metrics in a time series database that can be queries by Grafana to build dashboards.

The Docker sflow/prometheus image provides a simple way to run the application:
docker run --name sflow-rt -p 8008:8008 -p 6343:6343/udp -d sflow/prometheus
Configure sFlow agents to send data to the collector, 10.0.0.70, on port 6343.

Verify that the metrics are available using cURL:
$ curl http://10.0.0.70:8008/app/prometheus/scripts/export.js/dump/ALL/ALL/txt
ifinucastpkts{agent="10.0.0.30",datasource="2",host="server",ifname="enp3s0"} 9.44
ifoutdiscards{agent="10. Continue reading

Loggly

Loggly is a cloud logging and and analysis platform. This article will demonstrate how to integrate network events generated from industry standard sFlow instrumentation build into network switches.
Loggly offers a free 14 day evaluation, so you can try this example at no cost.
ICMP unreachable describes how monitoring ICMP destination unreachable messages can help identify misconfigured hosts and scanning behavior. The article uses the sFlow-RT real-time analytics software to process the raw sFlow and report on unreachable messages.

The following script, loggly.js, modifies the sFlow-RT script from the article to send events to the Loggly HTTP/S Event Endpoint:
var token = 'xxxxxxxx-xxxx-xxxx-xxxx-xxxxxxxxxxxx';

var url = 'https://logs-01.loggly.com/inputs/'+token+'/tag/http/';

var keys = [
'icmpunreachablenet',
'icmpunreachablehost',
'icmpunreachableprotocol',
'icmpunreachableport'
];

for (var i = 0; i < keys.length; i++) {
var key = keys[i];
setFlow(key, {
keys:'macsource,ipsource,macdestination,ipdestination,' + key,
value:'frames',
log:true,
flowStart:true
});
}

setFlowHandler(function(rec) {
var keys = rec.flowKeys.split(',');
var msg = {
flow_type:rec.name,
src_mac:keys[0],
src_ip:keys[1],
dst_mac:keys[2],
dst_ip:keys[3],
unreachable:keys[4]
};

try { http(url,'post','application/json',JSON.stringify(msg)); }
catch(e) { logWarning(e); };
}, keys);
Some notes on the script:
  1. Modify the script to use the correct token for your Loggly account.
  2. Including MAC addresses can help identify Continue reading

sFlow to JSON

The latest version of sflowtool can convert sFlow datagrams into JSON, making it easy to write scripts to process the standard sFlow telemetry streaming from devices in the network.

Download and compile the latest version of sflowtool:
git clone https://github.com/sflow/sflowtool.git
cd sflowtool/
./boot.sh
./configure
make
sudo make install
The -J option formats the JSON output to be human readable:
$ sflowtool -J
{
"datagramSourceIP":"10.0.0.162",
"datagramSize":"396",
"unixSecondsUTC":"1544241239",
"localtime":"2018-12-07T19:53:59-0800",
"datagramVersion":"5",
"agentSubId":"0",
"agent":"10.0.0.231",
"packetSequenceNo":"1068783",
"sysUpTime":"1338417874",
"samplesInPacket":"2",
"samples":[
{
"sampleType_tag":"0:2",
"sampleType":"COUNTERSSAMPLE",
"sampleSequenceNo":"148239",
"sourceId":"0:3",
"elements":[
{
"counterBlock_tag":"0:1",
"ifIndex":"3",
"networkType":"6",
"ifSpeed":"1000000000",
"ifDirection":"1",
"ifStatus":"3",
"ifInOctets":"4162076356",
"ifInUcastPkts":"16312256",
"ifInMulticastPkts":"187789",
"ifInBroadcastPkts":"2566",
"ifInDiscards":"0",
"ifInErrors":"0",
"ifInUnknownProtos":"0",
"ifOutOctets":"2115351089",
"ifOutUcastPkts":"7087570",
"ifOutMulticastPkts":"4453258",
"ifOutBroadcastPkts":"6141715",
"ifOutDiscards":"0",
"ifOutErrors":"0",
"ifPromiscuousMode":"0"
},
{
"counterBlock_tag":"0:2",
"dot3StatsAlignmentErrors":"0",
"dot3StatsFCSErrors":"0",
"dot3StatsSingleCollisionFrames":"0",
"dot3StatsMultipleCollisionFrames":"0",
"dot3StatsSQETestErrors":"0",
"dot3StatsDeferredTransmissions":"0",
"dot3StatsLateCollisions":"0",
"dot3StatsExcessiveCollisions":"0",
"dot3StatsInternalMacTransmitErrors":"0",
"dot3StatsCarrierSenseErrors":"0",
"dot3StatsFrameTooLongs":"0",
"dot3StatsInternalMacReceiveErrors":"0",
"dot3StatsSymbolErrors":"0"
}
]
},
{
"sampleType_tag":"0:1",
"sampleType":"FLOWSAMPLE",
"sampleSequenceNo":"11791",
"sourceId":"0:3",
"meanSkipCount":"2000",
"samplePool":"34185160",
"dropEvents":"0",
"inputPort":"3",
"outputPort":"10",
"elements":[
{
"flowBlock_tag":"0:1",
"flowSampleType":"HEADER",
"headerProtocol":"1",
"sampledPacketSize":"102",
"strippedBytes":"0",
"headerLen":"104",
"headerBytes":"0C-AE-4E-98-0B-89-05-B6-D8-D9-A2-66-80-00-54-00-00-45-08-12-04-00-04-10-4A-FB-A0-00-00-BC-A0-00-00-EF-80-00-DE-B1-E7-26-00-20-75-04-B0-C5-00-00-00-00-96-01-20-00-00-00-00-00-01-11-21-31-41-51-61-71-81-91-A1-B1-C1-D1-E1-F1-02-12-22-32-42-52-62-72-82-92-A2-B2-C2-D2-E2-F2-03-13-23-33-43-53-63-73-1A-1D-4D-76-00-00",
"dstMAC":"0cae4e980b89",
"srcMAC":"05b6d8d9a266",
"IPSize":"88",
"ip.tot_len":"84",
"srcIP":"10.0.0.203",
"dstIP":"10.0.0.254",
"IPProtocol":"1",
"IPTOS":"0",
"IPTTL":"64",
"IPID":"8576",
"ICMPType":"8",
"ICMPCode":"0"
},
{
"flowBlock_tag":"0:1001",
"extendedType":"SWITCH",
"in_vlan":"1",
"in_priority":"0",
"out_vlan":"1",
"out_priority":"0"
}
]
}
]
}
The output shows the JSON representation of a single sFlow datagram containing one counter sample and one flow sample.

The Continue reading

Mininet, ONOS, and segment routing

Leaf and spine traffic engineering using segment routing and SDN and CORD: Open-source spine-leaf Fabric describe a demonstration at the 2015 Open Networking Summit using the ONOS SDN controller and a physical network of 8 switches.

This article will describe how to emulate a leaf and spine network using Mininet and configure the ONOS segment routing application to provide equal cost multi-path (ECMP) routing of flows across the fabric. The Mininet Dashboard application running on the sFlow-RT real-time analytics platform is used to provide visibility into traffic flows across the emulated network.

First, run ONOS using Docker:
docker run --name onos --rm -p 6653:6653 -p 8181:8181 -d onosproject/onos
Use the graphical interface, http://onos:8181, to enable the OpenFlow Provider Suite, Network Config Host Provider, Network Config Link Provider, and Segment Routing applications. The screen shot above shows the resulting set of enabled services.

Next, install sFlow-RT and the Mininet Dashboard application on host with Mininet:
wget https://inmon.com/products/sFlow-RT/sflow-rt.tar.gz
tar -xvzf sflow-rt.tar.gz
./sflow-rt/get-app.sh sflow-rt mininet-dashboard
Start sFlow-RT:
./sflow-rt/start.sh
Download the sr.py script:
wget https://raw.githubusercontent.com/sflow-rt/onos-sr/master/sr.py
Start Mininet:
sudo env ONOS=10.0.0.73 mn --custom sr.py,sflow-rt/extras/sflow.py \
--link Continue reading

Real-time visibility at 400 Gigabits/s

The chart above demonstrates real-time, up to the second, flow monitoring on a 400 gigabit per second link. The chart shows that the traffic is composed of four, roughly equal, 100 gigabit per second flows.

The data was gathered from The International Conference for High PerformanceComputing, Networking, Storage, and Analysis (SC18) being held this week in Dallas. The conference network, SCinet, is described as the fastest and most powerful network in the world.
This year, the SCinet network includes recently announced 400 gigabit switches from Arista networks, see Arista Introduces 400 Gigabit Platforms. Each switch delivers 32 400G ports in a 1U form factor.
NRE-36 University of Southern California network topology for SuperComputing 2018
The switches are part of 400G demonstration network connecting USC, Caltech and StarLight booths. The chart shows traffic on a link connecting the USC and Caltech booths.

Providing the visibility needed to manage large scale high speed networks is a significant challenge. In this example, line rate traffic of 80 million packets per second is being monitored on the 400G port. The maximum packet rate for 64 byte packets on a 400 Gigabit, full duplex, link is approximately 1.2 billion packet per second Continue reading

Ryu measurement based control

ONOS measurement based control describes how real-time streaming telemetry can be used to automatically trigger SDN controller actions. The article uses DDoS mitigation as an example.

This article recreates the demonstration using the Ryu SDN framework and emulating a network using Mininet. Install both pieces of software on a Linux server or virtual machine in order to follow this example.

Start Ryu with the simple_switch_13 and ryu.app.ofctl_rest applications loaded:
ryu-manager $RYU_APP/simple_switch_13.py,$RYU_APP/ofctl_rest.py
Note: The simple_switch_13.py and ofctl_rest.py scripts are part of a standard Ryu installation. The $RYU_APP variable has been set to point to the Ryu app directory.
This demonstration uses the sFlow-RT real-time analytics engine to process standard sFlow streaming telemetry from the network switches.

Download sFlow-RT:
wget https://inmon.com/products/sFlow-RT/sflow-rt.tar.gz
tar -xvzf sflow-rt.tar.gz
Install the Mininet Dashboard application:
sflow-rt/get-app.sh sflow-rt mininet-dashboard
The following script, ryu.js, implements the DDoS mitigation function described in the previous article:
var ryu = '127.0.0.1';
var controls = {};

setFlow('udp_reflection',
{keys:'ipdestination,udpsourceport',value:'frames'});
setThreshold('udp_reflection_attack',
{metric:'udp_reflection',value:100,byFlow:true,timeout:2});

setEventHandler(function(evt) {
// don't consider inter-switch links
var link = topologyInterfaceToLink(evt.agent,evt.dataSource);
if(link) return;

// get port information
var port = topologyInterfaceToPort(evt.agent,evt.dataSource);
if(! Continue reading

Systemd traffic marking

Monitoring Linux services describes how the open source Host sFlow agent exports metrics from services launched using systemd, the default service manager on most recent Linux distributions. In addition, the Host sFlow agent efficiently samples network traffic using Linux kernel capabilities: PCAP/BPF, nflog, and ulog.

This article describes a recent extension to the Host sFlow systemd module, mapping sampled traffic to the individual services the generate or consume them. The ability to color traffic by application greatly simplifies service discovery and service dependency mapping; making it easy to see how services communicate in a multi-tier application architecture.

The following /etc/hsflowd.conf file configures the Host sFlow agent, hsflowd, to sampling packets on interface eth0, monitor systemd services and mark the packet samples, and track tcp performance:
sflow {
collector { ip = 10.0.0.70 }
pcap { dev = eth0 }
systemd { markTraffic = on }
tcp { }
}
The diagram above illustrates how the Host sFlow agent is able to efficiently monitor and classify traffic. In this case both the Host sFlow agent and an Apache web server are are running as services managed by systemd. A network connection , shown in Continue reading

Microsoft Office 365

Office 365 IP Address and URL Web service describes a simple REST API that can be used to query for the IP address ranges associated with Microsoft Office 365 servers.

This information is extremely useful, allowing traffic analytics software to combine telemetry obtained from network devices with information obtained using the Microsoft REST API  in order to identifying clients, links, and devices carrying the traffic, as well as any issues, such as link errors, and congestion,  that may be impacting performance.
The sFlow-RT analytics engine is programmable and includes a REST client that can be used to query the Microsoft API and combine the information with industry standard sFlow telemetry from network devices. The following script, office365.js, provides a simple example:
var api = 'https://endpoints.office.com/endpoints/worldwide';

function uuidv4() {
return 'xxxxxxxx-xxxx-4xxx-yxxx-xxxxxxxxxxxx'.replace(/[xy]/g, function(c) {
var r = Math.random() * 16 | 0, v = c == 'x' ? r : (r & 0x3 | 0x8);
return v.toString(16);
});
}

var reqid = uuidv4();

function updateAddressMap() {
var res, i, ips, id, groups;
try { res = http(api+'?clientrequestid='+reqid); }
catch(e) { logWarning('request failed ' + e); }
if(res == null) return;
res = JSON.parse(res);
groups Continue reading

Northbound Networks Zodiac GX

Mininet is widely used to emulate software defined networks (SDNs). Mininet flow analytics describes how standard sFlow telemetry, from Open vSwitch used by Mininet emulate the network, provides feedback to an SDN controller, allowing the controller to adapt the network to changing traffic, for example, to mitigate a distributed denial of service (DDoS) attack.

Northbound Networks Zodiac GX is an inexpensive open source software based switch that is ideal for experimenting with software defined networking (SDN) in a physical network setting. The small fanless package makes the switch an attractive option for desktop use. The Zodiac GX is also based on Open vSwitch, making it easy to take SDN control strategies developed on Mininet.
Enabling sFlow on the Zodiac GX is easy, navigate to the System>Startup page and add the following line to the end of the startup script (before the exit 0 line):
ovs-vsctl -- [email protected] create sflow agent=$OVS_BR target=$IP_CONTROLLER_1 sampling=100 polling=10 -- set bridge $OVS_BR [email protected]
Reboot the switch for the changed to take effect.

Use sflowtool to verify that sFlow is arriving at the controller host and to examine the contents of the telemetry stream. Running sflowtool using Docker is a simple alternative to building the software Continue reading

RDMA over Converged Ethernet (RoCE)

RDMA over Converged Ethernet is a network protocol that allows remote direct memory access (RDMA) over an Ethernet network. One of the benefits running RDMA over Ethernet is the visibility provided by standard sFlow instrumentation embedded in the commodity Ethernet switches used to build data center leaf and spine networks where RDMA is most prevalent.

The sFlow telemetry stream includes packet headers, sampled at line rate by the switch hardware. Hardware packet sampling allows the switch to monitor traffic at line rate on all ports, keeping up with the high speed data transfers associated with RoCE.

The diagram above shows the packet headers associated with RoCEv1 and RoCEv2 packets. Decoding the InfiniBand Global Routing Header (IB GRH) and InfiniBand Base Transport Header (IB BTH) allows an sFlow analyzer to report in detail on RoCE traffic.
The sFlow-RT real-time analytics engine recently added support for RoCE by decoding InfiniBand Global Routing and InfiniBand Base Transport fields. The screen capture of the sFlow-RT Flow-Trend application shows traffic associated with an RoCEv2 connection between two hosts, 10.10.2.22 and 10.10.2.52. The traffic consists of SEND and ACK messages exchanged as part of a reliable connection (RC Continue reading
1 2 3 9
