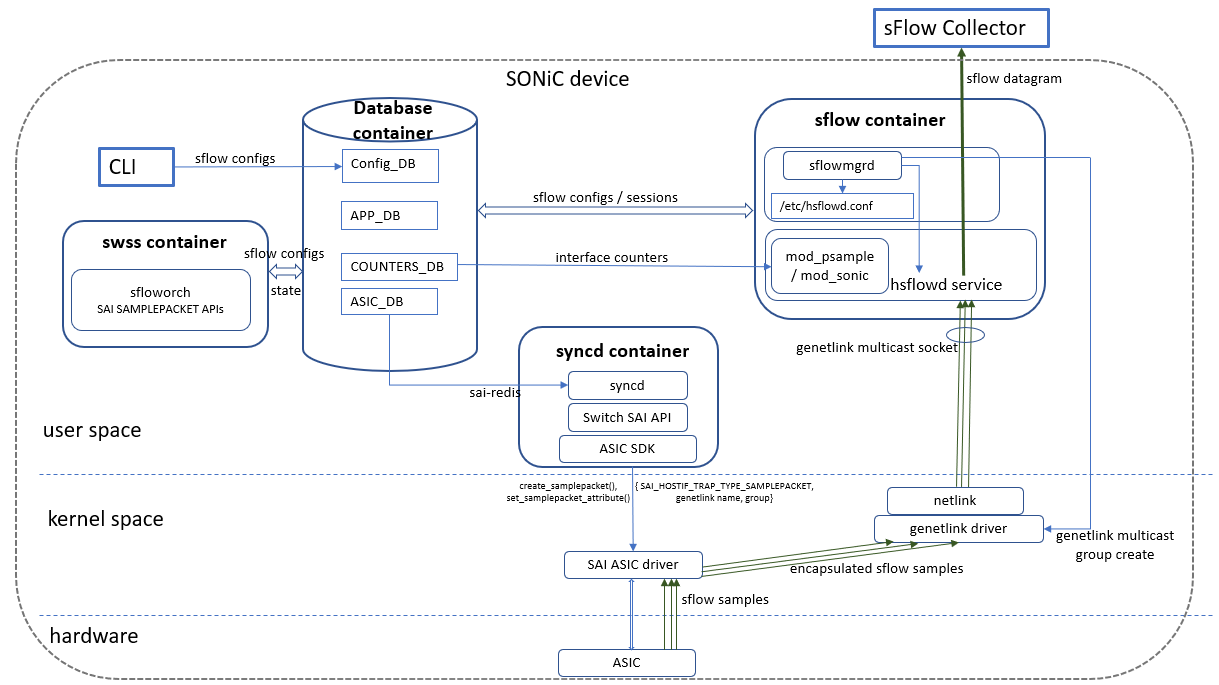

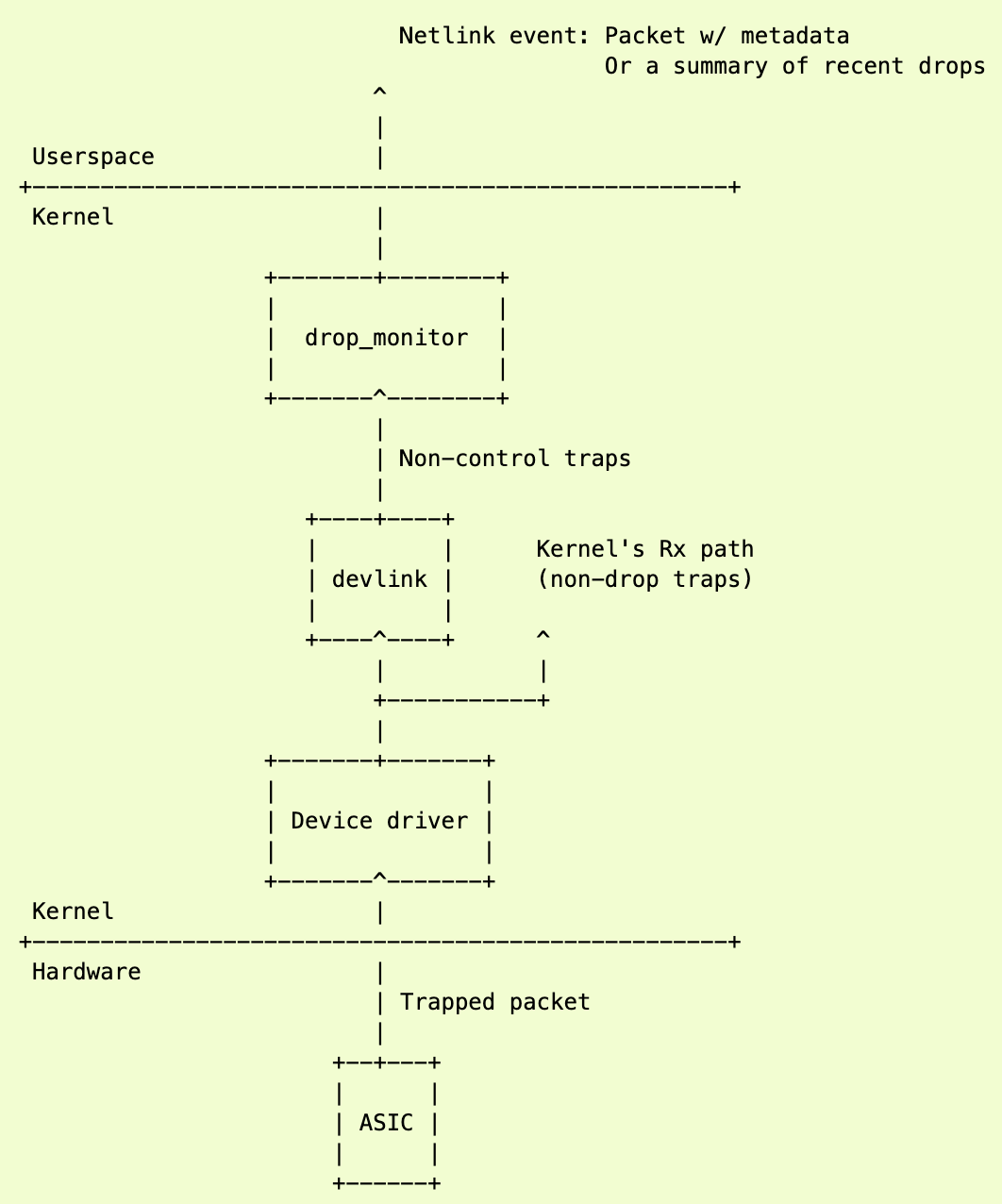

The OCP SAI (Switch Abstraction Interface) Project is an important part of the networking effort, defining "a vendor-independent way of controlling forwarding elements, such as a switching ASIC, an NPU or a software switch in a uniform manner." SAI 1.5 Release Notes describe enhancements to existing sFlow API, in particular adding support for the Linux psample netlink channel, see Linux 4.11 kernel extends packet sampling support. Supporting the standard Linux interface for packet sampling simplifies the implementation of sFlow agents (e.g. Host sFlow) and ensures consistent behavior across hardware platforms to deliver real-time network-wide visibility using industry standard sFlow protocol.

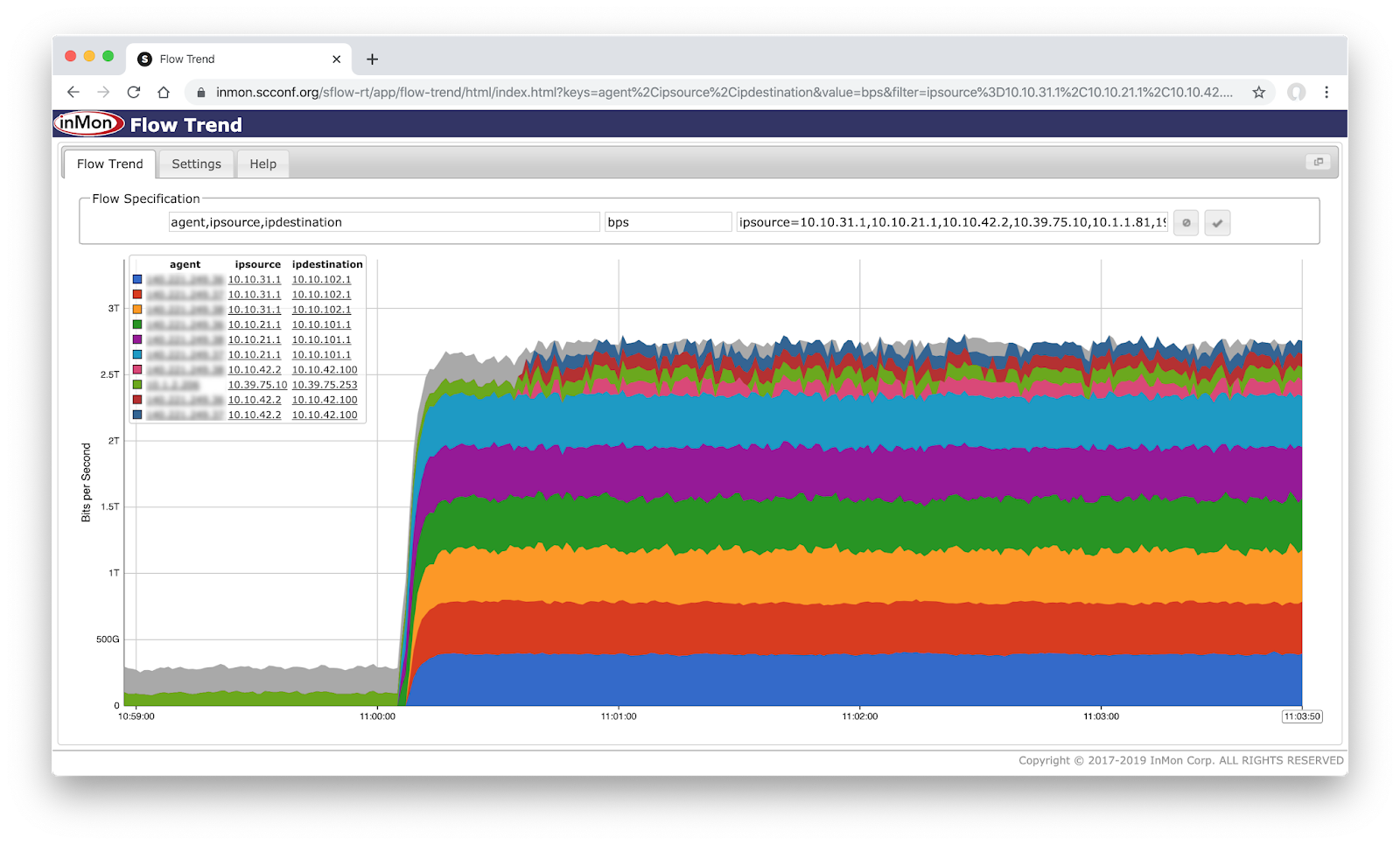

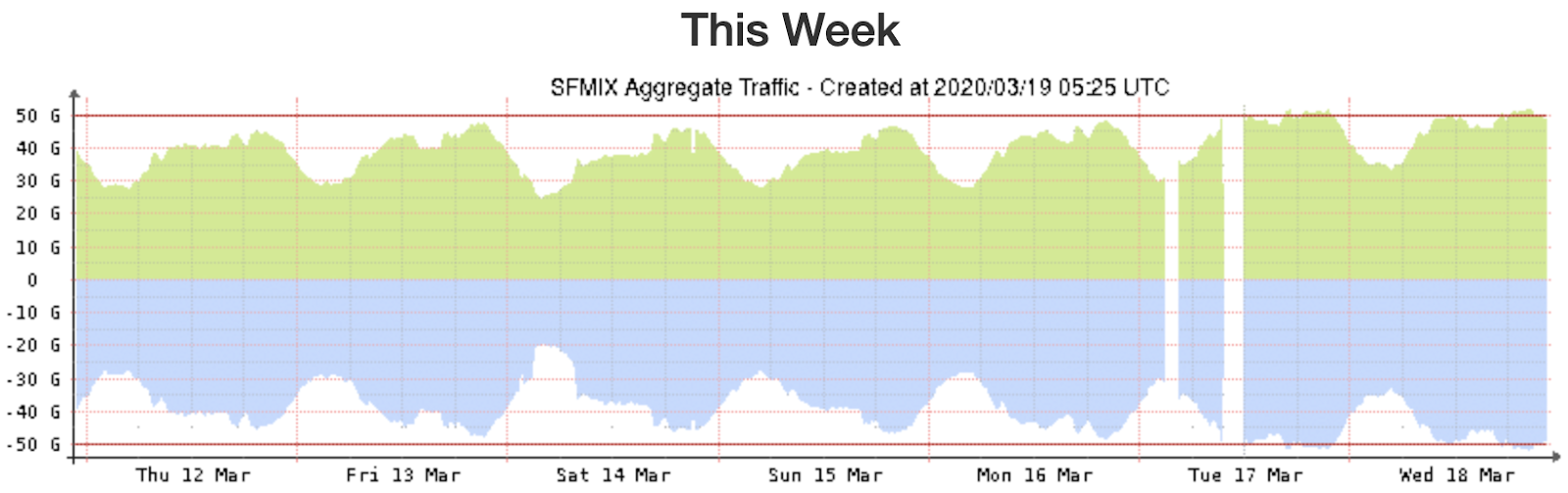

Real-time monitoring at terabit speeds

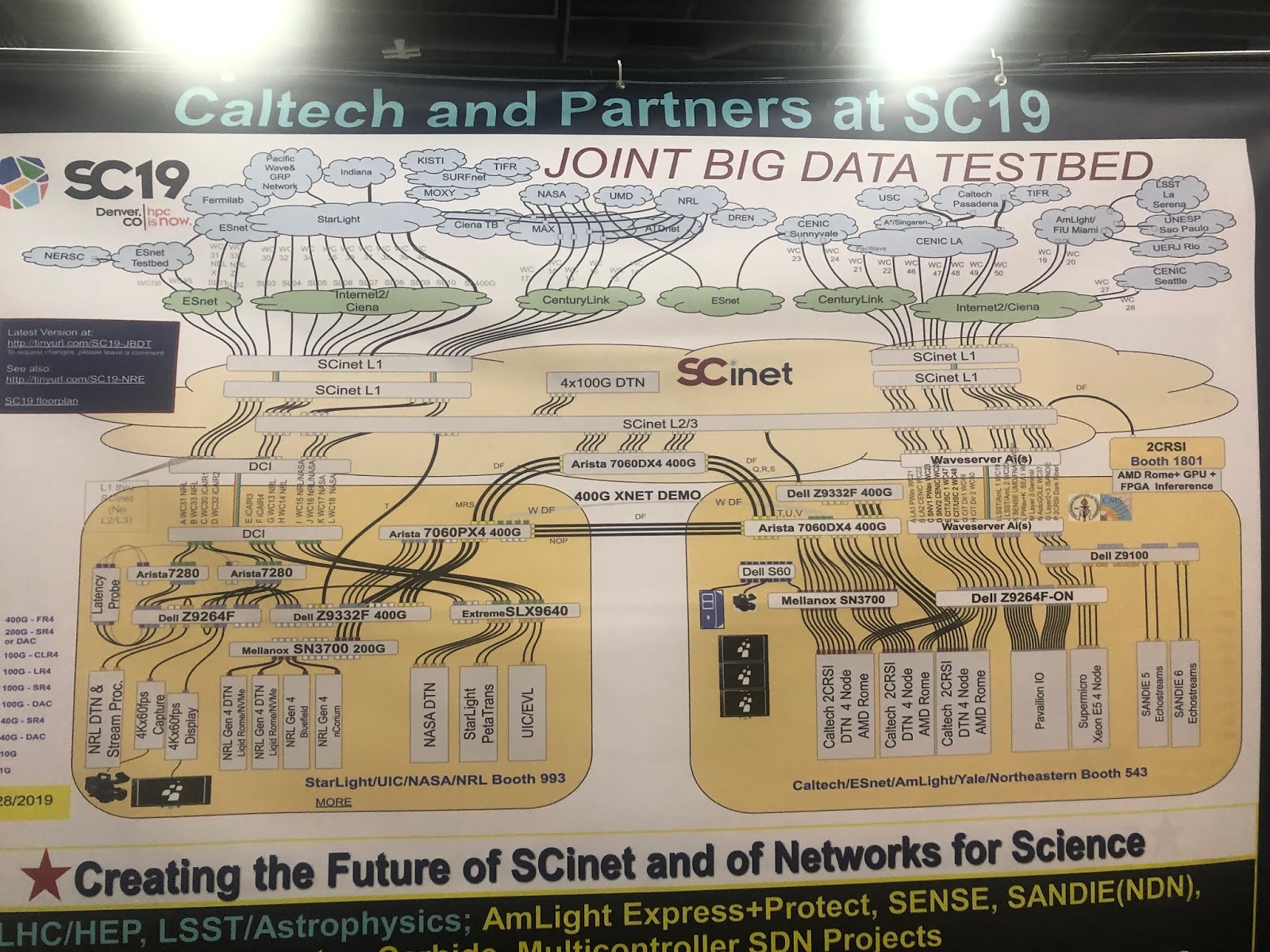

400GE First Data Networks: Caltech, Starlight/NRL, USC, SCinet/XNET, Ciena, Mellanox, Arista, Dell, 2CRSI, Echostreams, DDN and Pavilion Data, as well as other supporting optical, switch and server vendor partners will demonstrate the first fully functional 3 X400GE local ring network as well as 400GE wide area network ring, linking the Starlight and Caltech booths and Starlight in Chicago. This network will integrate storage using NVMe over Fabric, the latest high throughput methods, in-depth monitoring and realtime flow steering. As part of these demonstrations, we will make use of the latest DWDM, Waveserver Ai, and 400GE as Continue reading

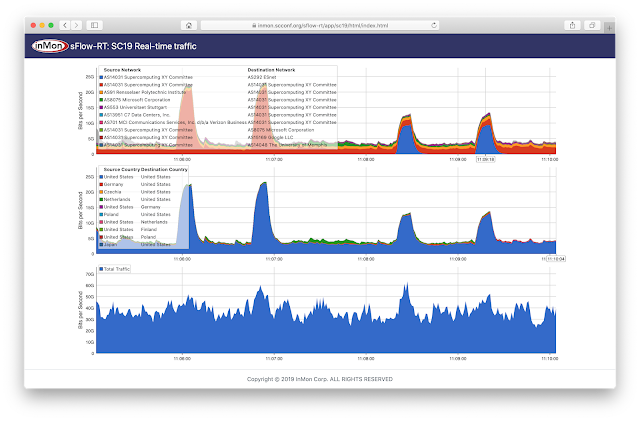

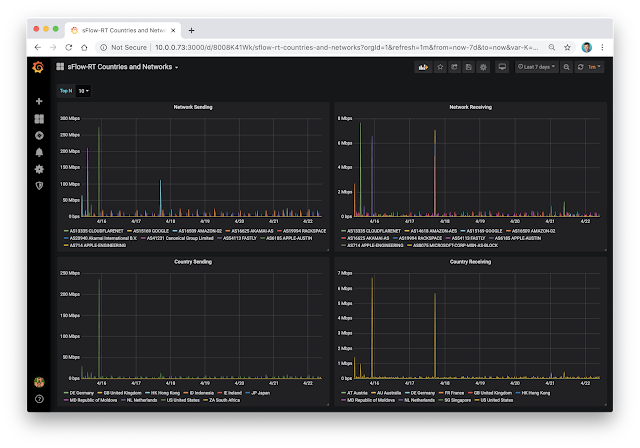

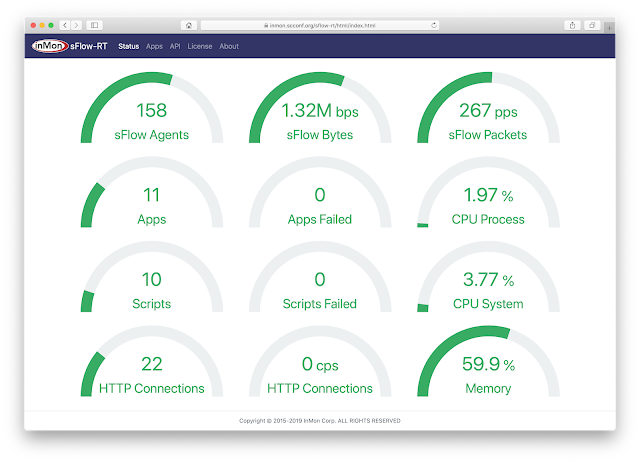

SC19 SCinet: Grafana network traffic dashboard
Observability in Data Center Networks
Observability in Data Center Networks: In this session, you’ll learn how the sFlow protocol provides broad visibility in modern data center environments as they migrate to highly meshed topologies. Our data center workloads are shifting to take advantage of higher speeds and bandwidth, so visibility to east-west traffic within the data center is becoming more important. Join Peter Phaal—one of the inventors of sFlow—and Joe Reves from SolarWinds product management as they discuss how sFlow differs from other flow instrumentation to deliver visibility in the switching fabric.THWACKcamp is SolarWinds’ free, annual, worldwide virtual IT learning event connecting thousands of skilled IT professionals with industry experts and SolarWinds technical staff. This video was one of the sessions.

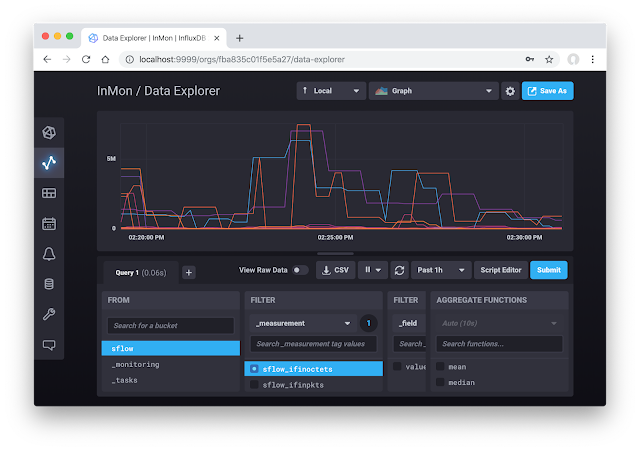

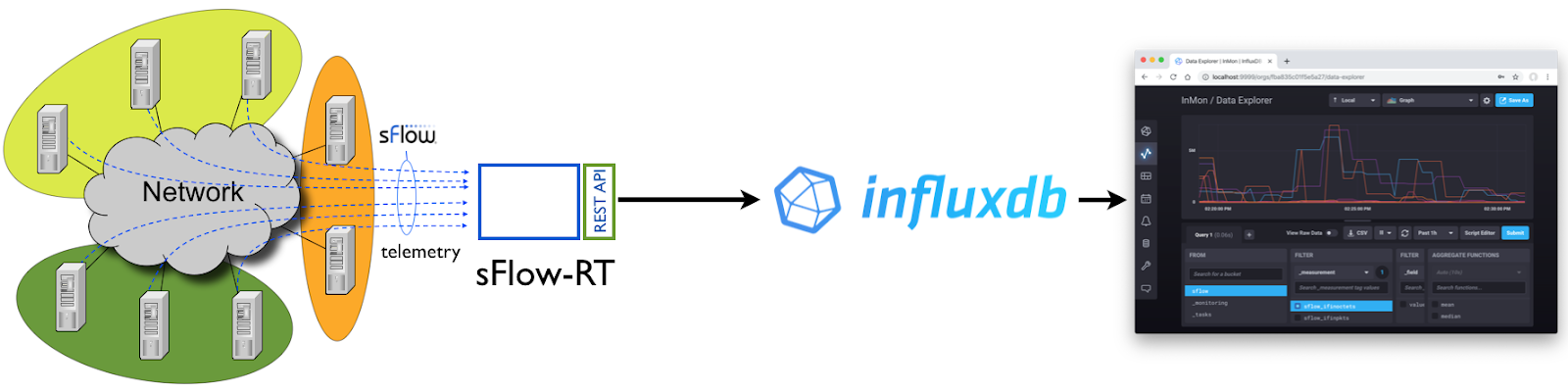

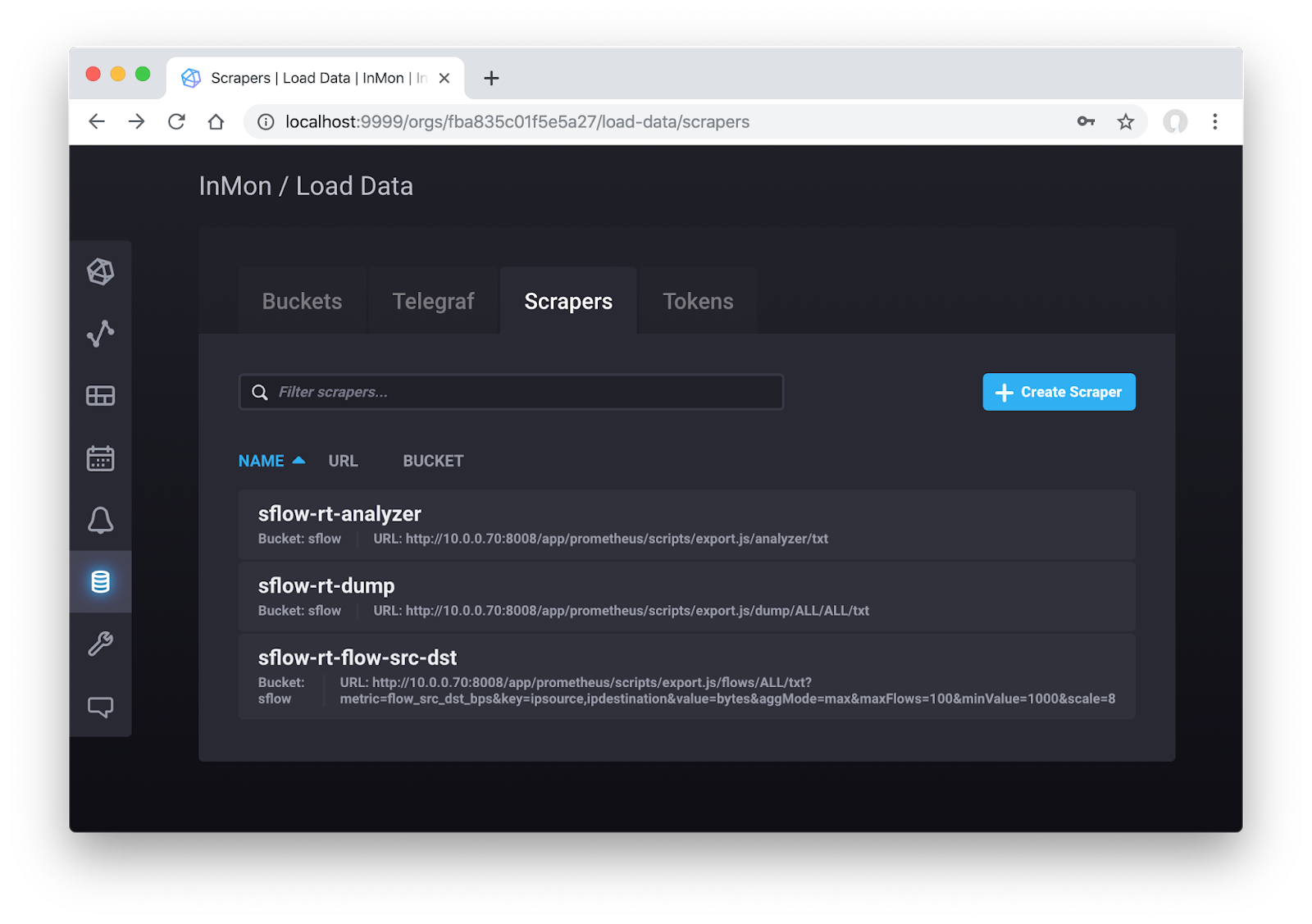

InfluxDB 2.0
docker run --name influxdb -p 9999:9999 quay.io/influxdb/influxdb:2.0.0-alphaPrometheus exporter describes an application that runs on the sFlow-RT analytics platform that converts real-time streaming telemetry from industry standard sFlow agents. Host, Docker, Swarm and Kubernetes monitoring describes how to deploy agents on popular container orchestration platforms.
- sflow-rt-analyzer,
URL: http://10.0.0.70:8008/prometheus/analyzer/txt - sflow-rt-dump,
URL: http://10.0.0.70:8008/prometheus/metrics/ALL/ALL/txt - sflow-rt-flow-src-dst,
URL: http://10.0.0.70:8008/app/prometheus/scripts/export.js/flows/ALL/txt?metric=flow_src_dst_bps&key=ipsource,ipdestination&value=bytes&aggMode=max&maxFlows=100&minValue=1000&scale=8
The first collects metrics about the performance of the sFlow-RT analytics engine, the second, all the metrics exported by the sFlow agents, and the third, is a flow metric (see Flow metrics with Prometheus and Grafana).
Updated 19 October 2019, native support for Prometheus export added to sFlow-RT, URLs 1 and 2 modified to reflect new API.
Updated 19 October 2019, native support for Prometheus export added to sFlow-RT, URLs 1 and 2 modified to reflect new API.
Flow metrics with Prometheus and Grafana
The latest version of the Prometheus exporter application adds flow export.
global:The above prometheus.yml file extends the previous example to add two additional scrape jobs, sflow-rt-src-dst-bps and sflow-rt-countries-bps, that return flow metrics. Defining flows describes the attributes and settings available to build Continue reading
scrape_interval: 15s
evaluation_interval: 15s
rule_files:
# - "first.rules"
# - "second.rules"
scrape_configs:
- job_name: 'sflow-rt-metrics'
metrics_path: /prometheus/metrics/ALL/ALL/txt
static_configs:
- targets: ['10.0.0.70:8008']
- job_name: 'sflow-rt-src-dst-bps'
metrics_path: /app/prometheus/scripts/export.js/flows/ALL/txt
static_configs:
- targets: ['10.0.0.70:8008']
params:
metric: ['ip_src_dst_bps']
key: ['ipsource','ipdestination']
label: ['src','dst']
value: ['bytes']
scale: ['8']
minValue: ['1000']
maxFlows: ['100']
- job_name: 'sflow-rt-countries-bps'
metrics_path: /app/prometheus/scripts/export.js/flows/ALL/txt
static_configs:
- targets: ['10.0.0.70:8008']
params:
metric: ['ip_countries_bps']
key: ['null:[country:ipsource]:unknown','null:[country:ipdestination]:unknown']
label: ['src','dst']
value: ['bytes']
scale: ['8']
aggMode: ['sum']
minValue: ['1000']
maxFlows: ['100']
Host, Docker, Swarm and Kubernetes monitoring
The Host sFlow agent is available as pre-packaged rpm/deb files that can be downloaded and installed on each node in a cluster.
sflow {
collector { ip=10.0.0.70 }
docker { }
pcap { dev=docker0 }
pcap { dev=docker_gwbridge }
}The above /etc/hsflowd.conf file, see Configuring Host sFlow for Linux via /etc/hsflowd.conf, enables the docker {} and pcap {} modules for detailed visibility into container metrics and network traffic flows, and streams telemetry to an sFlow collector (10.0.0.70). The configuration is the same for every node making it simple to install and configure Host sFlow on all nodes using orchestration software such as Puppet, Chef, Ansible, etc.The agent is also available as the pre-build sflow/host-sflow image, Continue reading
Packet analysis using Docker
This article describes the sflow/tcpdump and sflow/tshark Docker images, which provide a convenient way to analyze packets captured using sFlow.
Run the following command to analyze packets using tcpdump:
$ docker run -p 6343:6343/udp -p 8008:8008 sflow/tcpdump
19:06:42.000000 ARP, Reply 10.0.0.254 is-at c0:ea:e4:89:b0:98 (oui Unknown), length 64
19:06:42.000000 IP 10.0.0.236.548 > 10.0.0.70.61719: Flags [P.], seq 3380015689:3380015713, ack 515038158, win 41992, options [nop,nop,TS val 1720029042 ecr 904769627], length 24
19:06:42.000000 Continue reading
Running sflowtool using Docker
The sflow/sflowtool Docker image provides a simple way to run sflowtool. Run the following command to print the contents of sFlow packets:
$ docker run -p 6343:6343/udp sflow/sflowtoolThe -g option flattens the output so that it is more easily filtered using grep:
startDatagram =================================
datagramSourceIP 10.0.0.111
datagramSize 144
unixSecondsUTC 1321922602
datagramVersion 5
agentSubId 0
agent 10.0.0.20
packetSequenceNo 3535127
sysUpTime 270660704
samplesInPacket 1
startSample ----------------------
sampleType_tag 0:2
sampleType COUNTERSSAMPLE
sampleSequenceNo 228282
sourceId 0:14
counterBlock_tag 0:1
ifIndex 14
networkType 6
ifSpeed 100000000
ifDirection 0
ifStatus 3
ifInOctets 4839078
ifInUcastPkts 15205
ifInMulticastPkts 0
ifInBroadcastPkts 4294967295
ifInDiscards 0
ifInErrors 0
ifInUnknownProtos 4294967295
ifOutOctets 149581962744
ifOutUcastPkts 158884229
ifOutMulticastPkts 4294967295
ifOutBroadcastPkts 4294967295
ifOutDiscards 101
ifOutErrors 0
ifPromiscuousMode 0
endSample ----------------------
endDatagram =================================
$ docker run -p 6343:6343/udp sflow/sflowtool -g | grep ifInOctets
2019-09-03T22:37:21+0000 10.0.0.231 Continue reading
Forwarding using sFlow-RT
- Without Forwarding Each sFlow agent is configured to stream sFlow telemetry to each of the analysis applications. This configuration is appropriate when a small number of applications is being used to continuously monitor performance. However, the overhead on the network and agents increases as additional analyzers are added. Often it is not possible to increase the number of analyzers since many embedded sFlow agents have limited resources and only support a small number of sFlow streams. In addition, the complexity of configuring each agent to add or remove an analysis application can be significant since agents may reside in Ethernet switches, routers, servers, hypervisors and applications on many different platforms from a variety of vendors.
- With Forwarding In this case all the agents are configured to send sFlow to a forwarding module which resends the data to the analysis applications. In this case analyzers can be added and removed simply by reconfiguring the forwarder without any changes required to the agent configurations.

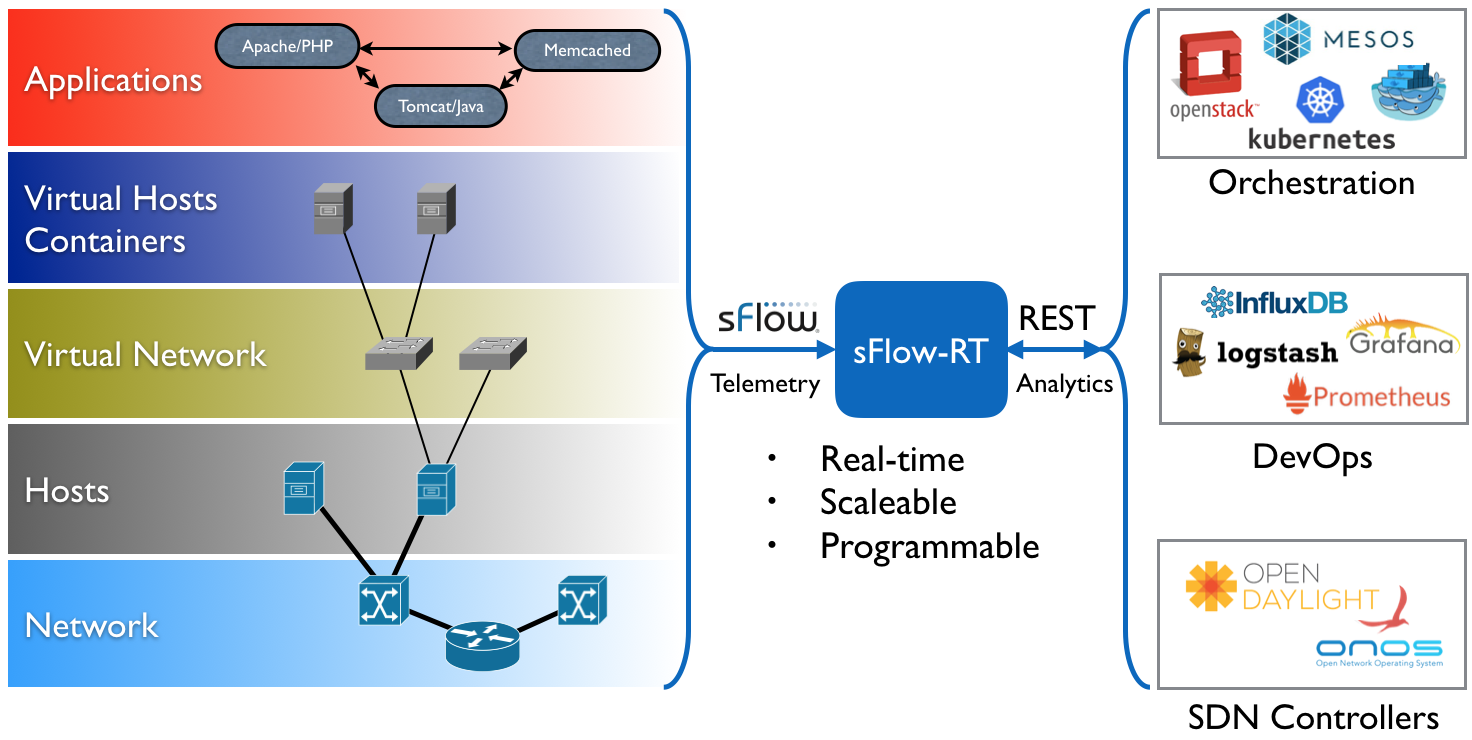

sFlow-RT 3.0 released
Applications are available that replace features from the previous 2.3 release. The following instructions show how to install sFlow-RT 3.0 along with basic data exploration applications.
On a system with Java 1.8+ installed:
wget https://inmon.com/products/sFlow-RT/sflow-rt.tar.gzOn a system with Docker installed:
tar -xvzf sflow-rt.tar.gz
./sflow-rt/get-app.sh sflow-rt flow-trend
./sflow-rt/get-app.sh sflow-rt browse-metrics
./sflow-rt/start.sh
mkdir appThe product user interface can be accessed on port 8008. The Status page, shown at the top of this article, displays key metrics about the performance of the software.
docker run -v $PWD/app:/sflow-rt/app --entrypoint /sflow-rt/get-app.sh sflow/sflow-rt sflow-rt flow-trend
docker run -v $PWD/app:/sflow-rt/app --entrypoint /sflow-rt/get-app.sh sflow/sflow-rt sflow-rt browse-metrics
docker run -v $PWD/app:/sflow-rt/app -p 6343:6343/udp -p 8008:8008 sflow/sflow-rt
Click on the flow-trend button to open the application and trend traffic flows in real-time. The RESTflow article describes the flow analytics capabilities of sFlow-RT in Continue reading

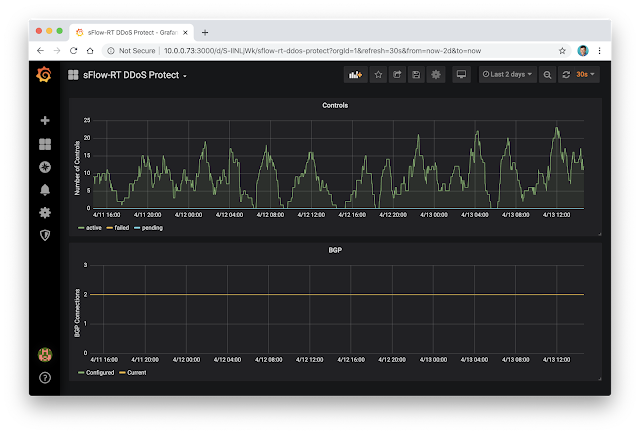

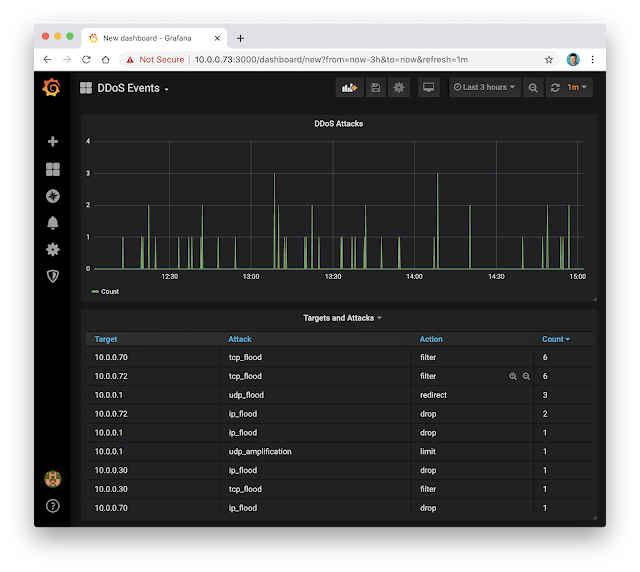

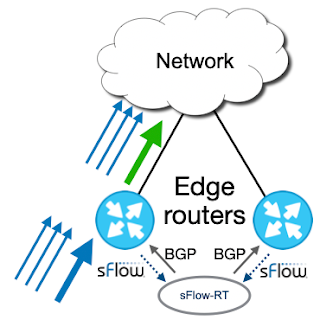

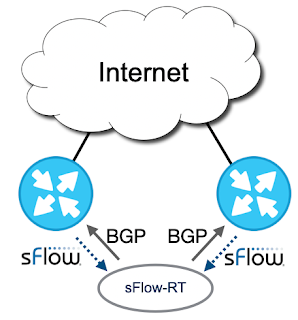

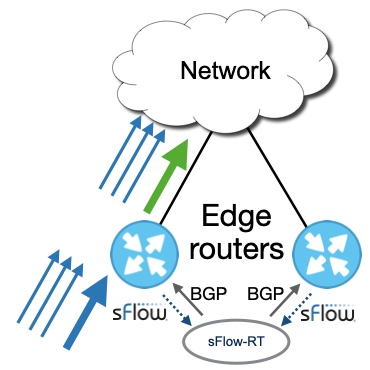

Arista BGP FlowSpec
The video of a talk by Peter Lundqvist from DKNOG9 describes BGP FlowSpec, use cases, and details of Arista's implementation.

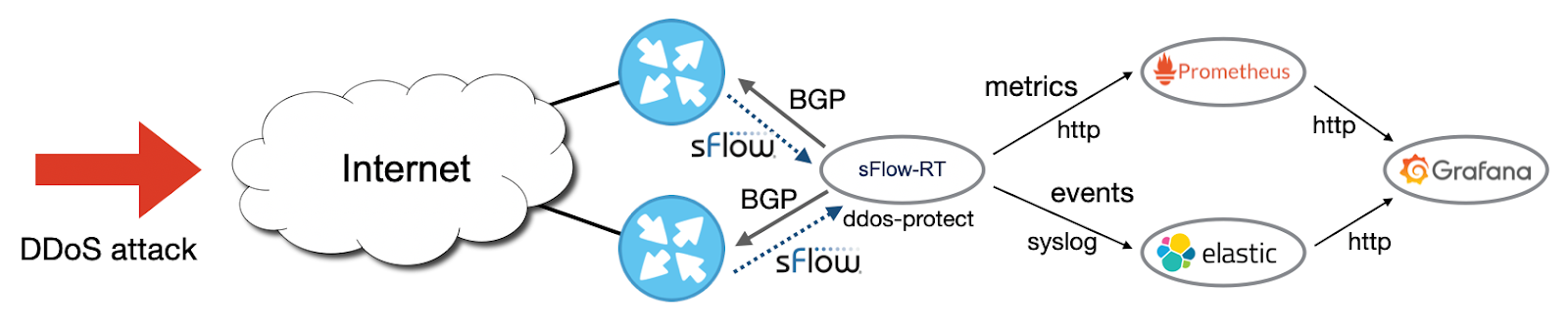

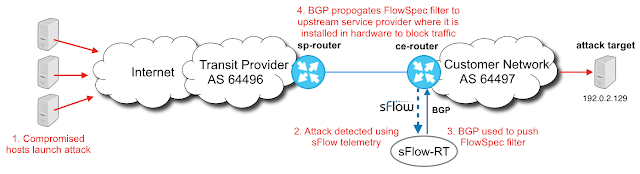

FlowSpec for real-time control and sFlow telemetry for real-time visibility is a powerful combination that can be used to automate DDoS mitigation and traffic engineering. The article, Real-time DDoS mitigation using sFlow and BGP FlowSpec, gives an example using the sFlow-RT analytics software.
The following output shows the EOS configuration statements related to sFlow and FlowSpec:
!
service routing protocols model multi-agent
!
sflow sample 16384
sflow polling-interval 30
sflow destination 10.0.0.70
sflow run
!
interface Ethernet1
flow-spec ipv4 ipv6
!
interface Management1
ip address 10.0.0.96/24
!
ip routing
!
router bgp 65096
router-id 10.0.0.96
neighbor 10.0.0.70 remote-as 65070
neighbor 10.0.0.70 transport remote-port 1179
neighbor 10.0.0.70 send-community extended
neighbor 10.0.0.70 maximum-routes 12000
!
address-family flow-spec ipv4
neighbor 10.0.0.70 Continue reading
Mininet flow analytics with custom scripts
sudo mn --custom sflow-rt/extras/sflow.py --link tc,bw=10 \Mininet, ONOS, and segment routing provides an example using a Custom Topology, e.g.
--topo tree,depth=2,fanout=2
sudo env ONOS=10.0.0.73 mn --custom sr.py,sflow-rt/extras/sflow.py \This article describes how to incorporate sFlow monitoring in a fully custom Mininet script. Consider the following simpletest.py script based on Working with Mininet:
--link tc,bw=10 --topo=sr '--controller=remote,ip=$ONOS,port=6653'
#!/usr/bin/python
from mininet.topo import Topo
from mininet.net import Mininet
from mininet.util import dumpNodeConnections
from mininet.log import setLogLevel
class SingleSwitchTopo(Topo):
"Single switch connected to n hosts."
def build(self, n=2):
switch = self.addSwitch('s1')
# Python's range(N) generates 0..N-1
for h in range(n):
host = self.addHost('h%s' % (h + 1))
self.addLink(host, switch)
def simpleTest():
"Create and test a simple network"
topo = SingleSwitchTopo(n=4)
net = Mininet(topo)
net.start()
print "Dumping host connections"
dumpNodeConnections(net.hosts)
print "Testing bandwidth between h1 and h4"
h1, h4 = net.get( 'h1', 'h4' )
net.iperf( (h1, h4) )
net.stop()
if __name__ == '__main__':
# Continue reading
Secure forwarding of sFlow using ssh
This article describes a simple method of carrying sFlow datagrams over an encrypted ssh connection which can be useful in situations where a VPN is not available, for example, sending sFlow to an analyzer in the public cloud, or to an external consultant.
The diagram shows the elements of the solution. A collector on the site receives sFlow datagrams from the network devices and uses the sflow_fwd.py script to convert the datagrams into line delimited hexadecimal strings that are sent over an ssh connection to another instance of sflow_fwd.py running on the analyzer that converts the hexadecimal strings back to sFlow datagrams.
The following sflow_fwd.py Python script accomplishes the task:
#!/usr/bin/python
import socket
import sys
import argparse
parser = argparse.ArgumentParser(description='Serialize/deserialize sFlow')
parser.add_argument('-c', '--collector', default='')
parser.add_argument('-s', '--server')
parser.add_argument('-p', '--port', type=int, default=6343)
Continue reading

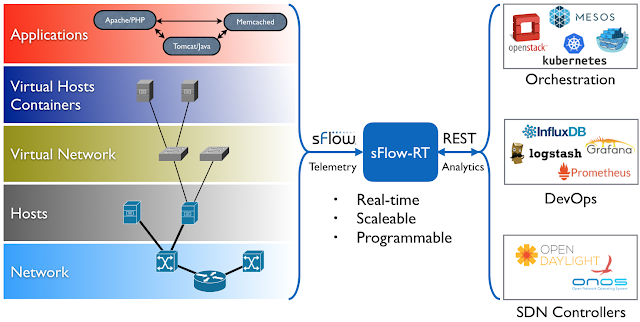

Prometheus exporter
The diagram above shows the elements of the solution: sFlow telemetry streams from hosts and switches to an instance of sFlow-RT. The sFlow-RT analytics software converts the raw measurements into metrics that are accessible through a REST API. The sflow-rt/prometheus application extends the REST API to include native Prometheus exporter functionality allowing Prometheus to retrieve metrics. Prometheus stores metrics in a time series database that can be queries by Grafana to build dashboards.
Update 19 October 2019, native support for Prometheus export added to sFlow-RT, Prometheus application no longer needed to run this example, use URL: /prometheus/metrics/ALL/ALL/txt. The Prometheus application is needed for exporting traffic flows, see Flow metrics with Prometheus and Grafana.
The Docker sflow/prometheus image provides a simple way to run the application:
docker run --name sflow-rt -p 8008:8008 -p Continue reading
Loggly
Loggly is a cloud logging and and analysis platform. This article will demonstrate how to integrate network events generated from industry standard sFlow instrumentation build into network switches.Loggly offers a free 14 day evaluation, so you can try this example at no cost.ICMP unreachable describes how monitoring ICMP destination unreachable messages can help identify misconfigured hosts and scanning behavior. The article uses the sFlow-RT real-time analytics software to process the raw sFlow and report on unreachable messages.
The following script, loggly.js, modifies the sFlow-RT script from the article to send events to the Loggly HTTP/S Event Endpoint:
var token = 'xxxxxxxx-xxxx-xxxx-xxxx-xxxxxxxxxxxx';Some notes on the script:
var url = 'https://logs-01.loggly.com/inputs/'+token+'/tag/http/';
var keys = [
'icmpunreachablenet',
'icmpunreachablehost',
'icmpunreachableprotocol',
'icmpunreachableport'
];
for (var i = 0; i < keys.length; i++) {
var key = keys[i];
setFlow(key, {
keys:'macsource,ipsource,macdestination,ipdestination,' + key,
value:'frames',
log:true,
flowStart:true
});
}
setFlowHandler(function(rec) {
var keys = rec.flowKeys.split(',');
var msg = {
flow_type:rec.name,
src_mac:keys[0],
src_ip:keys[1],
dst_mac:keys[2],
dst_ip:keys[3],
unreachable:keys[4]
};
try { http(url,'post','application/json',JSON.stringify(msg)); }
catch(e) { logWarning(e); };
}, keys);
- Modify the script to use the correct token for your Loggly account.
- Including MAC addresses can help identify Continue reading
sFlow to JSON
The latest version of sflowtool can convert sFlow datagrams into JSON, making it easy to write scripts to process the standard sFlow telemetry streaming from devices in the network.Download and compile the latest version of sflowtool:
git clone https://github.com/sflow/sflowtool.gitThe -J option formats the JSON output to be human readable:
cd sflowtool/
./boot.sh
./configure
make
sudo make install
$ sflowtool -JThe output shows the JSON representation of a single sFlow datagram containing one counter sample and one flow sample.
{
"datagramSourceIP":"10.0.0.162",
"datagramSize":"396",
"unixSecondsUTC":"1544241239",
"localtime":"2018-12-07T19:53:59-0800",
"datagramVersion":"5",
"agentSubId":"0",
"agent":"10.0.0.231",
"packetSequenceNo":"1068783",
"sysUpTime":"1338417874",
"samplesInPacket":"2",
"samples":[
{
"sampleType_tag":"0:2",
"sampleType":"COUNTERSSAMPLE",
"sampleSequenceNo":"148239",
"sourceId":"0:3",
"elements":[
{
"counterBlock_tag":"0:1",
"ifIndex":"3",
"networkType":"6",
"ifSpeed":"1000000000",
"ifDirection":"1",
"ifStatus":"3",
"ifInOctets":"4162076356",
"ifInUcastPkts":"16312256",
"ifInMulticastPkts":"187789",
"ifInBroadcastPkts":"2566",
"ifInDiscards":"0",
"ifInErrors":"0",
"ifInUnknownProtos":"0",
"ifOutOctets":"2115351089",
"ifOutUcastPkts":"7087570",
"ifOutMulticastPkts":"4453258",
"ifOutBroadcastPkts":"6141715",
"ifOutDiscards":"0",
"ifOutErrors":"0",
"ifPromiscuousMode":"0"
},
{
"counterBlock_tag":"0:2",
"dot3StatsAlignmentErrors":"0",
"dot3StatsFCSErrors":"0",
"dot3StatsSingleCollisionFrames":"0",
"dot3StatsMultipleCollisionFrames":"0",
"dot3StatsSQETestErrors":"0",
"dot3StatsDeferredTransmissions":"0",
"dot3StatsLateCollisions":"0",
"dot3StatsExcessiveCollisions":"0",
"dot3StatsInternalMacTransmitErrors":"0",
"dot3StatsCarrierSenseErrors":"0",
"dot3StatsFrameTooLongs":"0",
"dot3StatsInternalMacReceiveErrors":"0",
"dot3StatsSymbolErrors":"0"
}
]
},
{
"sampleType_tag":"0:1",
"sampleType":"FLOWSAMPLE",
"sampleSequenceNo":"11791",
"sourceId":"0:3",
"meanSkipCount":"2000",
"samplePool":"34185160",
"dropEvents":"0",
"inputPort":"3",
"outputPort":"10",
"elements":[
{
"flowBlock_tag":"0:1",
"flowSampleType":"HEADER",
"headerProtocol":"1",
"sampledPacketSize":"102",
"strippedBytes":"0",
"headerLen":"104",
"headerBytes":"0C-AE-4E-98-0B-89-05-B6-D8-D9-A2-66-80-00-54-00-00-45-08-12-04-00-04-10-4A-FB-A0-00-00-BC-A0-00-00-EF-80-00-DE-B1-E7-26-00-20-75-04-B0-C5-00-00-00-00-96-01-20-00-00-00-00-00-01-11-21-31-41-51-61-71-81-91-A1-B1-C1-D1-E1-F1-02-12-22-32-42-52-62-72-82-92-A2-B2-C2-D2-E2-F2-03-13-23-33-43-53-63-73-1A-1D-4D-76-00-00",
"dstMAC":"0cae4e980b89",
"srcMAC":"05b6d8d9a266",
"IPSize":"88",
"ip.tot_len":"84",
"srcIP":"10.0.0.203",
"dstIP":"10.0.0.254",
"IPProtocol":"1",
"IPTOS":"0",
"IPTTL":"64",
"IPID":"8576",
"ICMPType":"8",
"ICMPCode":"0"
},
{
"flowBlock_tag":"0:1001",
"extendedType":"SWITCH",
"in_vlan":"1",
"in_priority":"0",
"out_vlan":"1",
"out_priority":"0"
}
]
}
]
}
The Continue reading
Mininet, ONOS, and segment routing
This article will describe how to emulate a leaf and spine network using Mininet and configure the ONOS segment routing application to provide equal cost multi-path (ECMP) routing of flows across the fabric. The Mininet Dashboard application running on the sFlow-RT real-time analytics platform is used to provide visibility into traffic flows across the emulated network.
First, run ONOS using Docker:
docker run --name onos --rm -p 6653:6653 -p 8181:8181 -d onosproject/onosUse the graphical interface, http://onos:8181, to enable the OpenFlow Provider Suite, Network Config Host Provider, Network Config Link Provider, and Segment Routing applications. The screen shot above shows the resulting set of enabled services.
Next, install sFlow-RT and the Mininet Dashboard application on host with Mininet:
wget https://inmon.com/products/sFlow-RT/sflow-rt.tar.gzStart sFlow-RT:
tar -xvzf sflow-rt.tar.gz
./sflow-rt/get-app.sh sflow-rt mininet-dashboard
./sflow-rt/start.shDownload the sr.py script:
wget https://raw.githubusercontent.com/sflow-rt/onos-sr/master/sr.pyStart Mininet:
sudo env ONOS=10.0.0.73 mn --custom sr.py,sflow-rt/extras/sflow.py \
--link Continue reading
Real-time visibility at 400 Gigabits/s
The data was gathered from The International Conference for High PerformanceComputing, Networking, Storage, and Analysis (SC18) being held this week in Dallas. The conference network, SCinet, is described as the fastest and most powerful network in the world.
 |
| NRE-36 University of Southern California network topology for SuperComputing 2018 |
Providing the visibility needed to manage large scale high speed networks is a significant challenge. In this example, line rate traffic of 80 million packets per second is being monitored on the 400G port. The maximum packet rate for 64 byte packets on a 400 Gigabit, full duplex, link is approximately 1.2 billion packet per second Continue reading
