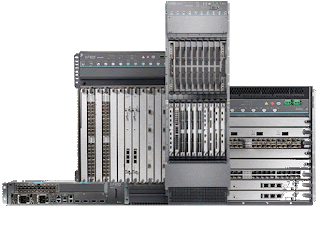

sFlow available on Juniper MX series routers

sFlow support on MX Series devices—Starting in Junos OS Release 18.1R1, you can configure sFlow technology (as a sFlow agent) on a MX Series device, to continuously monitor traffic at wire speed on all interfaces simultaneously. The sFlow technology is a monitoring technology for high-speed switched or routed networks.  - New and Changed Features

Understanding How to Use sFlow Technology for Network Monitoring on a MX Series Router lists the following benefits of sFlow Technology on a MX Series Router:

• sFlow can be used by software tools like a network analyzer to continuously monitor tens of thousands of switch or router ports simultaneously.
• Since sFlow uses network sampling (forwarding one packet from ‘n’ number of total packets) for analysis, it is not resource intensive (for example processing, memory and more). The sampling is done at the hardware application-specific integrated circuits (ASICs) and hence it is simple and more accurate.

With the addition of the MX series routers, Juniper now supports sFlow across its entire product range:

• ACX5000 Universal Access Router
• EX Series Ethernet Switches
• MX Series 3D Universal Edge Routers
• NFX Series Network Services Platform
• OCX1100 Open networking, cloud-optimized switch
• QFX Series High-performance, high-density data center switches

0

ONOS measurement based control

ONOS traffic analytics describes how to run the ONOS SDN controller with a virtual network created using Mininet. The article also showed how to monitor network traffic using industry standard sFlow instrumentation available in Mininet and in physical switches.

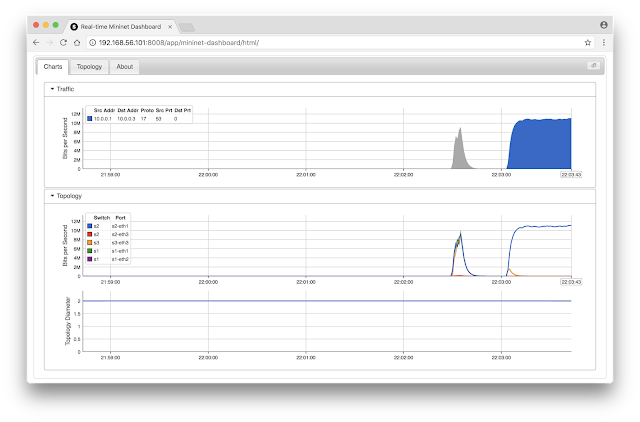

This article uses the same ONOS / Mininet test bed to demonstrate how sFlow-RT real-time flow analytics can be used to push controls to the network through the ONOS REST API.  Leaf and spine traffic engineering using segment routing and SDN used real-time flow analytics to load balance an ONOS controlled physical network. In this example, we will use ONOS to filter DDoS attack traffic on a Mininet virtual network.

The following sFlow-RT script, ddos.js, detects DDoS attacks and programs ONOS filter rules to block the attacks:

var user = 'onos';
var password = 'rocks';
var onos = '192.168.123.1';
var controls = {};

setFlow('udp_reflection',
 {keys:'ipdestination,udpsourceport',value:'frames'});
setThreshold('udp_reflection_attack',
 {metric:'udp_reflection',value:100,byFlow:true,timeout:2});

setEventHandler(function(evt) {
 // don't consider inter-switch links
 var link = topologyInterfaceToLink(evt.agent,evt.dataSource);
 if(link) return;

 // get port information
 var port = topologyInterfaceToPort(evt.agent,evt.dataSource);
 if(!port) return;

 // need OpenFlow info to create ONOS filtering rule
 if(!port.dpid || !port.ofport) return;

 // we already have  Continue reading

0

ONOS traffic analytics

Open Network Operating System (ONOS) is "a software defined networking (SDN) OS for service providers that has scalability, high availability, high performance, and abstractions to make it easy to create applications and services." The open source project is hosted by the Linux Foundation.

Mininet and onos.py workflow describes how to run ONOS using the Mininet network emulator. Mininet allows virtual networks to be quickly constructed and is a simple way to experiment with ONOS. In addition, Mininet flow analytics describes how to enable industry standard sFlow streaming telemetry in Mininet, proving a simple way monitor traffic in the ONOS controlled network.

For example, the following command creates a Mininet network, controlled by ONOS, and monitored using sFlow:

sudo mn --custom ~/onos/tools/dev/mininet/onos.py,sflow-rt/extras/sflow.py \
--link tc,bw=10 --controller onos,1 --topo tree,2,2

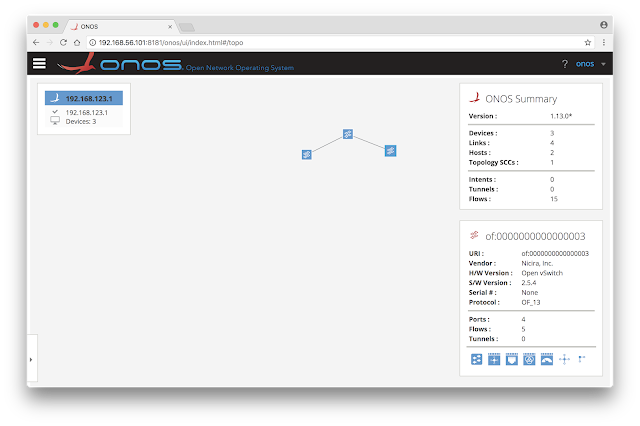

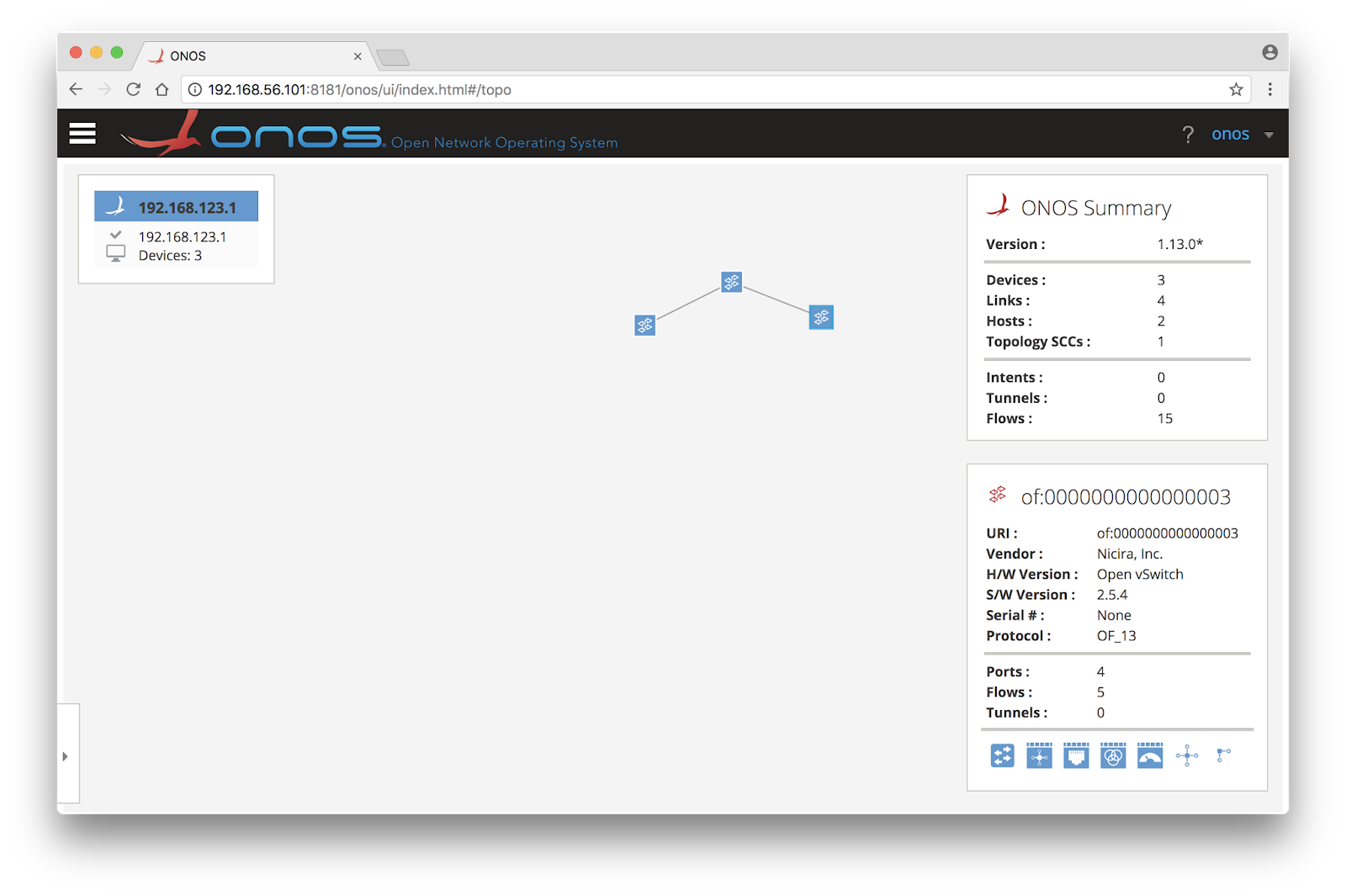

The screen capture above shows the network topology in the ONOS web user interface.
Install Mininet dashboard to visualize the network traffic. The screen capture above shows a large flow over the same topology being displayed by ONOS, see Mininet weathermap for more examples.

In this case, the traffic was created by the following Mininet command:

mininet-onos> iperf h1 h3

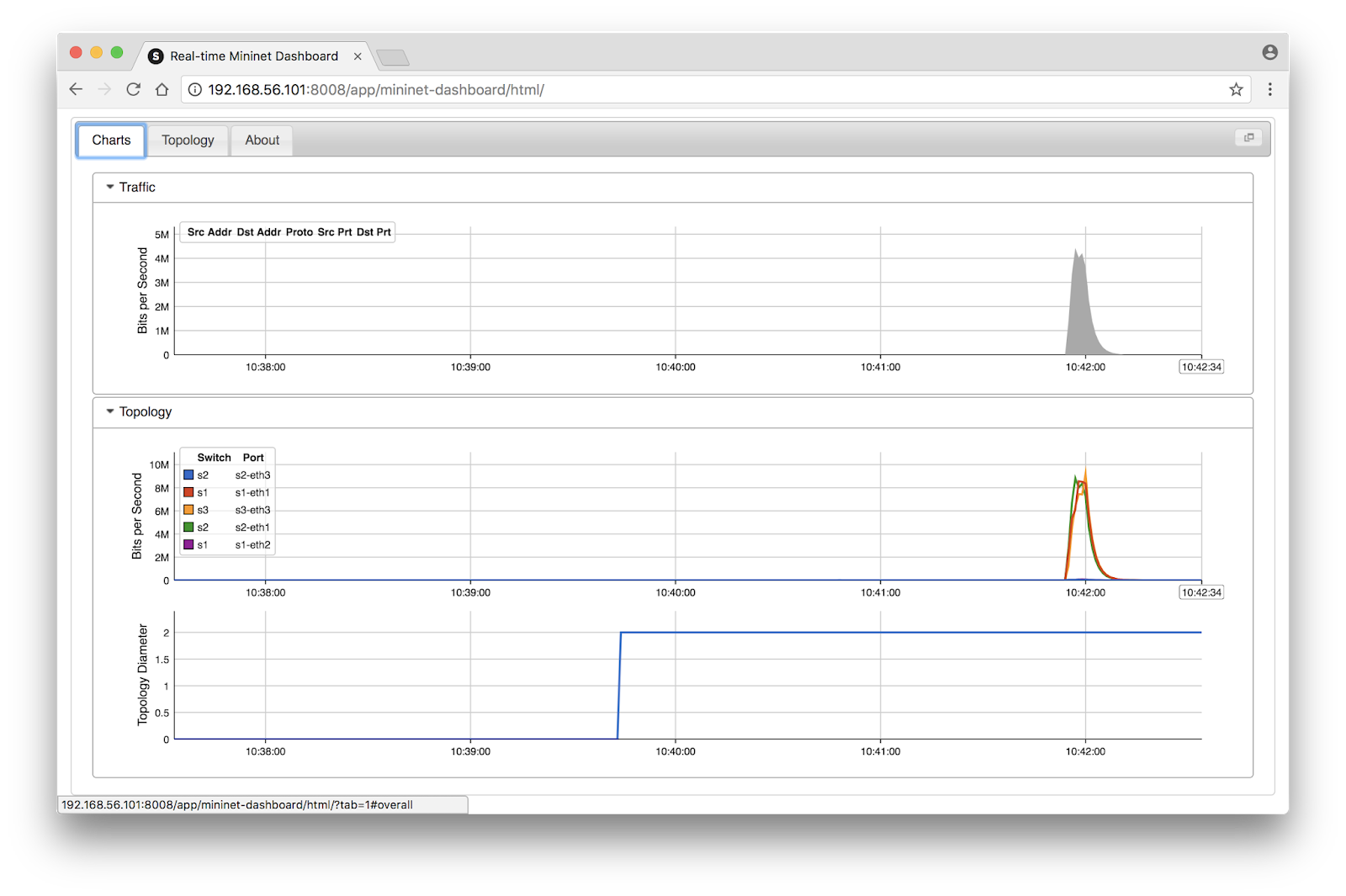

The screen capture above shows top flows, busiest Continue reading

0

Real-time baseline anomaly detection

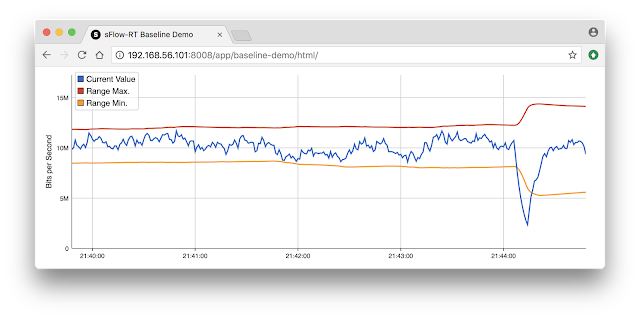

The screen capture demonstrates the real-time baseline and anomaly detection based on industry standard sFlow streaming telemetry. The chart was generated using sFlow-RT analytics software. The blue line is an up to the second measure of traffic (measured in Bits per Second). The red and gold lines represent dynamic upper and lower limits calculated by the baseline function. The baseline function flags "high" and "low" value anomalies when values move outside the limits. In this case, a "low" value anomaly was flagged for the drop in traffic shown in the chart.

Writing Applications provides a general introduction to sFlow-RT programming. The baseline functionality is exposed through through the JavaScript API.

Create new baseline

baselineCreate(name,window,sensitivity,repeat);

Where:

• name, name used to reference baseline.
• window, the number of previous intervals to consider in calculating the limits.
• sensitivity, the number of standard deviations used to calculate the limits.
• repeat, the number of successive data points outside the limits before flagging anomaly

In this example, baseline parameter values were window=180 (seconds), sensitivity=2, and repeat=3.

Update baseline

var status = baselineCheck(name,value);

Where:

• status, "learning" while baseline is warming up (takes window intervals),  "normal" if value is in expected range, "low" Continue reading

0

Flow smoothing

The sFlow-RT real-time analytics engine includes statistical smoothing. The chart above illustrates the effect of different levels of smoothing when analyzing real-time sFlow telemetry.

The traffic generator in this example creates an alternating pattern: 1.25Mbytes/second for 30 seconds followed by a pause of 30 seconds. Smoothing time constants between 1 second and 500 seconds have been applied to generate the family of charts. The blue line is the result of 1 second smoothing and closely tracks the traffic pattern. At the other extreme, the dark red line is the result of 500 second smoothing, showing a constant 625Kbytes/second (the average of the waveform).

There is a tradeoff between responsiveness and variability (noise) when selecting the level of smoothing. Selecting a suitable smoothing level depends on the flow analytics application.

Low smoothing values are appropriate when fast response is required, for example:

• DDoS detection
• Leaf and spine traffic engineering using segment routing and SDN
• Internet router using merchant silicon

Higher smoothing values are appropriate when less variability is desirable, for example:

• Real-time traffic visualization using Netflix Vizceral
• Real-time web analytics
• Real-time visibility and control of campus networks

Generating the chart

The results described in this article are easily reproduced using the testbed Continue reading

0

Mininet weathermap

Mininet dashboard is a real-time dashboard displaying traffic information from Mininet virtual networks. The screen capture demonstrates the real-time network weather map capability that was recently added to the dashboard. The torus topology is displayed and link widths are updated every second to reflect traffic. In this example a large flow between switches s1x1 and s3x3 is routed via s1x3.

The network was created using the following Mininet command:

sudo mn --custom=sflow-rt/extras/sflow.py --link tc,bw=10 \
--topo torus,3,3 --switch ovsbr,stp=1 --test iperf

In the screen capture above you can clearly see the large flow traversing switches, s4, s3, s2, s1, s9, s13, and s15 in a tree topology. The network was created using the following command:

sudo mn --custom sflow-rt/extras/sflow.py --link tc,bw=10 \
--topo tree,depth=4,fanout=2 --test iperf

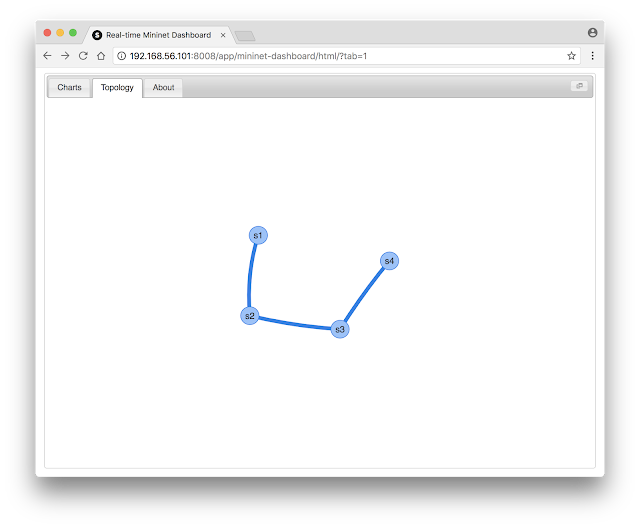

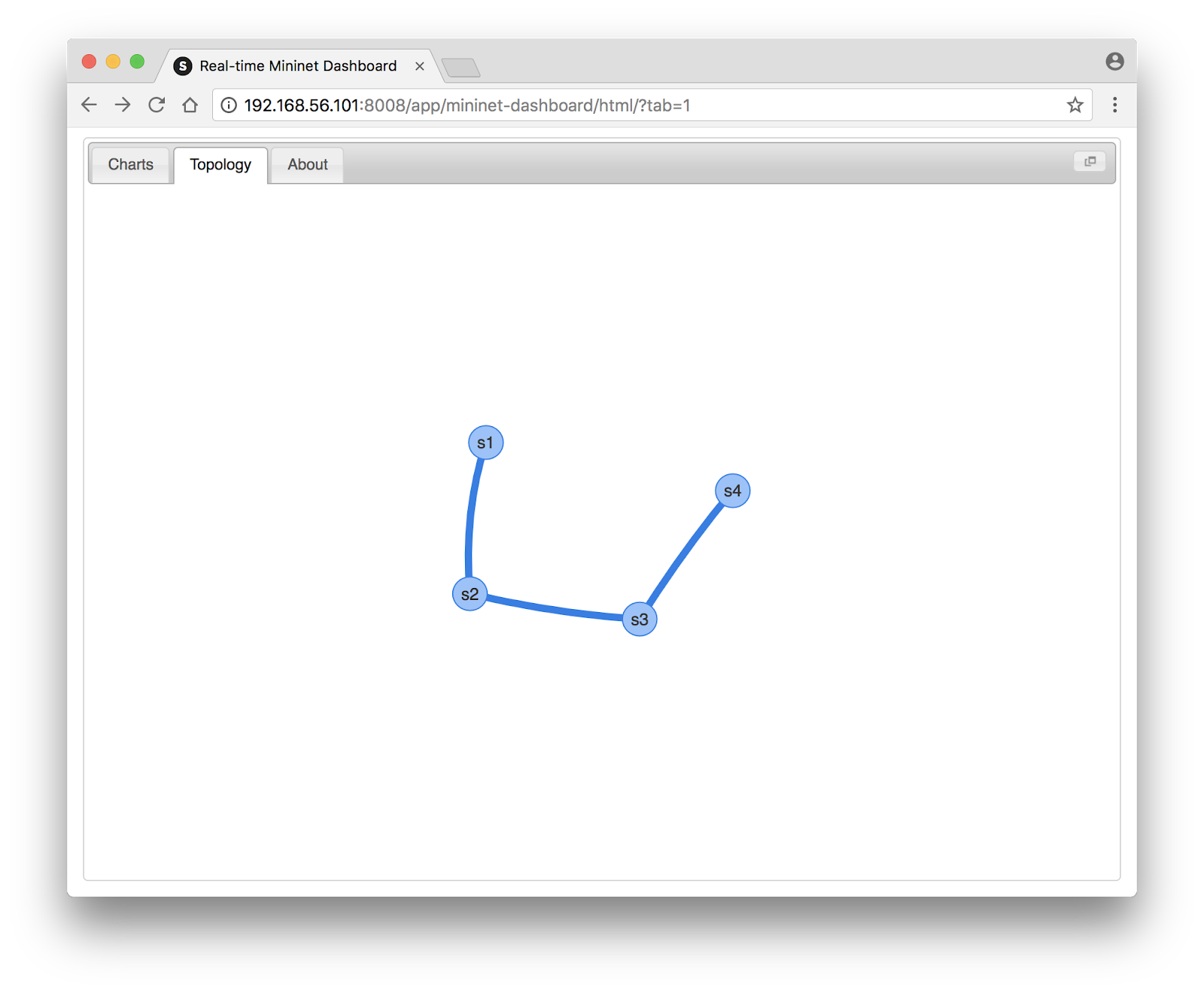

The screen capture above shows a large flow traversing switches s1, s2, s3, and s4 in a linear topology. The network was created using the following command:

sudo mn --custom sflow-rt/extras/sflow.py --link tc,bw=10 \
--topo linear,4 --test iperf

It's also easy to create Custom Topologies. The following command creates the example custom topology, topo-2sw-2host.py, that ships with Mininet:

sudo mn --custom ~/mininet/custom/topo-2sw-2host.py,sflow-rt/extras/sflow.py  Continue reading

0

OCP Summit 2018

Network telemetry was a popular topic at the recent OCP U.S. Summit 2018 in San Jose, California, with an entire afternoon track of the two day conference devoted to the subject. Videos of the talks should soon be posted on the conference web site.

The following articles on this blog cover related topics:

• Streaming telemetry
• InBand network telemetry
• Black hole detection
• Troubleshooting connectivity problems in leaf and spine fabrics
• Monitoring leaf and spine fabric performance
• Leaf and spine traffic engineering using segment routing and SDN
• Marking large flows
• Broadcom BroadView Instrumentation
• Broadcom ASIC table utilization metrics, DevOps, and SDN
• Lasers!

In addition, there were a couple of live sFlow telemetry demonstration in the conference exhibit hall.
The first was a demonstration of leaf and spine fabric visibility using white box switches running the open source Linux Foundation OpenSwitch network operating system. OpenSwitch describes how the open source Host sFlow agent enables standard sFlow instrumentation in merchant silicon based white box switches using OpenSwitch Control Plane Services (CPS), which in turn programs the silicon using the OCP Switch Abstraction Interface (SAI).

The rack in the booth contains a two spine, five leaf network. Each of the switches in the network Continue reading

0

Prometheus and Grafana

Prometheus is an open source time series database optimized to collect large numbers of metrics from cloud infrastructure. This article will explore how industry standard sFlow telemetry streaming supported by network devices and Host sFlow agents (Linux, Windows, FreeBSD, AIX, Solaris, Docker, Systemd, Hyper-V, KVM, Nutanix AHV, Xen) can be integrated with Prometheus.

The diagram above shows the elements of the solution: sFlow telemetry streams from hosts and switches to an instance of sFlow-RT. The sFlow-RT analytics software converts the raw measurements into metrics that are accessible through a REST API.

The following prometheus.php script mediates between the Prometheus metrics export protocol and the sFlow-RT REST API.  HTTP queries from Prometheus are translated into calls to the sFlow-RT REST API and JSON responses are converted into Prometheus metrics.

<?php
header('Content-Type: text/plain');
if(isset($_GET['labels'])) {
  $keys = htmlspecialchars($_GET["labels"]);
}
$vals = htmlspecialchars($_GET["values"]);
if(isset($keys)) {
  $cols = $keys.','.$vals;
} else {
  $cols = $vals;
}
$key_arr = explode(",",$keys);
$result = file_get_contents('http://localhost:8008/table/ALL/'.$cols.'/json');
$obj = json_decode($result,true);
foreach ($obj as $row) {
  unset($labels);
  foreach ($row as $cell) {
    if(!isset($labels)) {
      $labels = 'agent="'.$cell['agent'].'",datasource="'.$cell['dataSource'].'"';
    }
    $name = $cell['metricName'];
    $val = $cell['metricValue'];
    if(in_array($name,$key_arr)) {
      $labels .=  Continue reading

0

OpenSwitch

OpenSwitch is a Linux Foundation project providing an open source white box control plane running on a standard Linux distribution. The diagram above shows the OpenSwitch architecture.

This article describes how to enable industry standard sFlow telemetry using the open source Host sFlow agent. The Host sFlow agent uses Control Plane Services (CPS) to configure sFlow instrumentation in the hardware and gather metrics. CPS in turn uses the Open Compute Project (OCP) Switch Abstraction Interface (SAI) as a vendor independent method of configuring the hardware. Hardware support for sFlow is a standard feature supported by Network Processing Unit (NPU) vendors (Barefoot, Broadcom, Cavium, Innovium, Intel, Marvell, Mellanox, etc.) and vendor neutral sFlow configuration is part of the SAI.

Installing and configuring Host sFlow agent

Installing the software is simple. Log into the switch and type the following commands:

wget --no-check-certificate https://github.com/sflow/host-sflow/releases/download/v2.0.17-1/hsflowd-opx_2.0.17-1_amd64.deb
sudo dpkg -i hsflowd-opx_2.0.17-1_amd64.deb

The sFlow agent requires very little configuration, automatically monitoring all switch ports using the following default settings:

Link Speed	Sampling Rate	Polling Continue reading

0

Intranet DDoS attacks

As on a Darkling Plain: Network Survival in an Age of Pervasive DDoS talk by Steinthor Bjarnason at the recent NANOG 71 conference. The talk discusses the threat that the proliferation of network connected devices in enterprises create when they are used to launch denial of service attacks. Last year's Mirai attacks are described, demonstrating the threat posed by mixed mode attacks where a compromised host is used to infect large numbers devices on the corporate network.

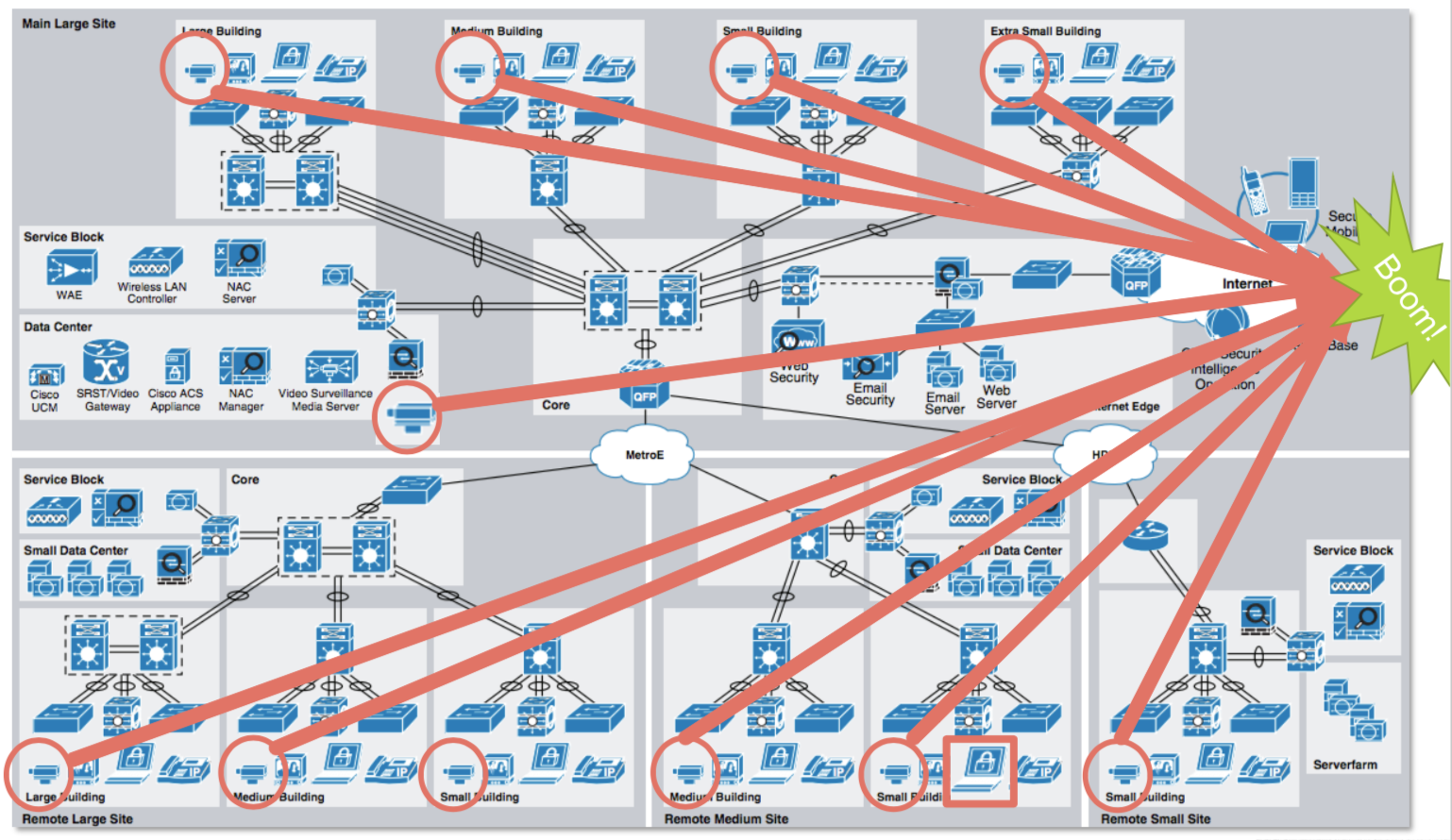

The first slide from the talk shows a denial attack launched against an external target, launched from infected video surveillance cameras scattered throughout the the enterprise network. The large volume of traffic fills up external WAN link and overwhelms stateful firewalls.

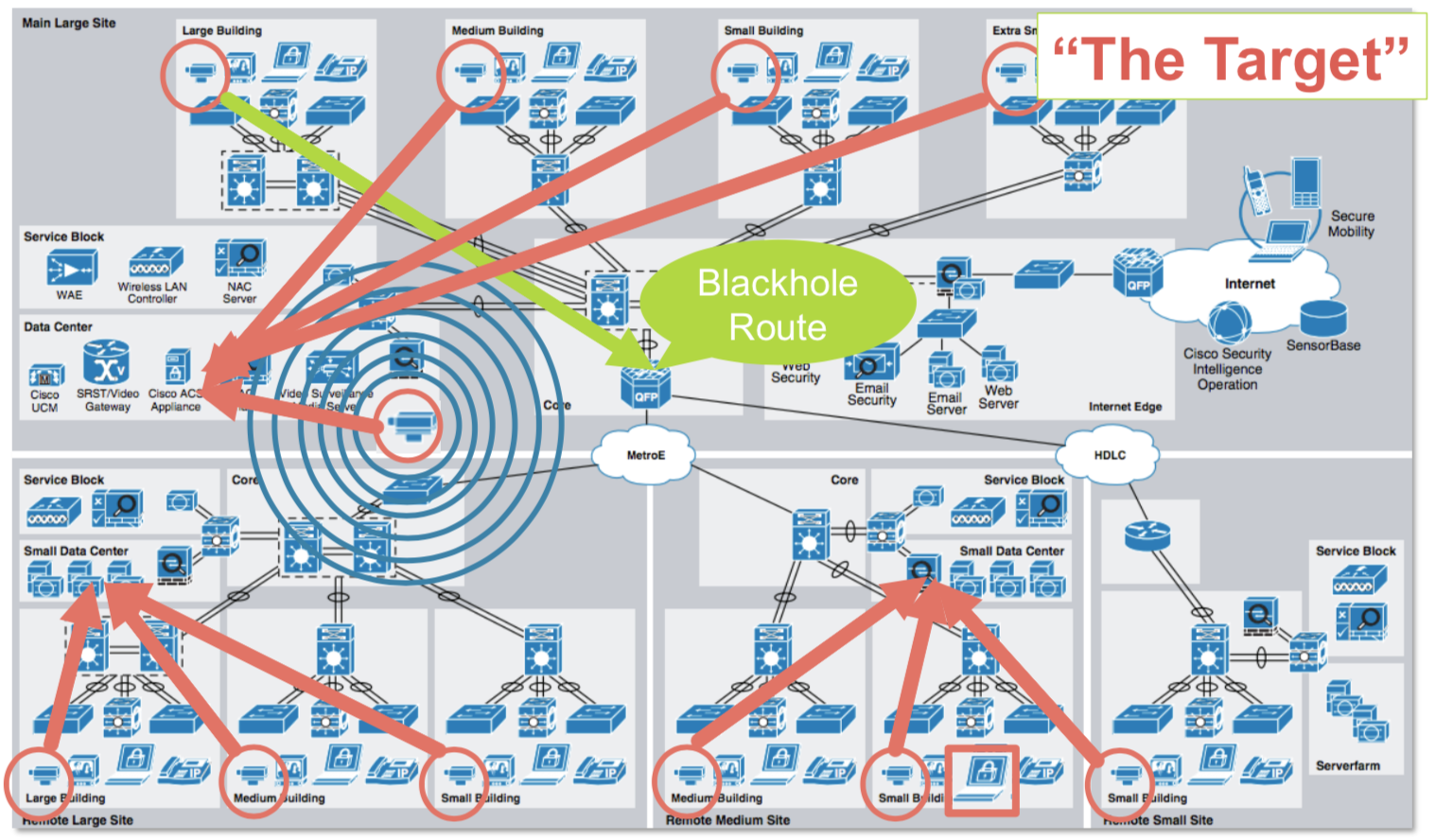

The second slide shows an attack targeting critical internal services that can have been identified by reconnaissance from the compromised devices. In addition, scanning activity associated with reconnaissance for additional devices can itself overload internal resources and cause outages.

In both cases, most of the critical activity occurs behind the corporate firewall, making it extremely challenging to detect and mitigate these threats.

The talk discusses a number of techniques that service providers use to secure their networks that enterprises will need to adopt Continue reading

0

RESTful control of Cumulus Linux ACLs

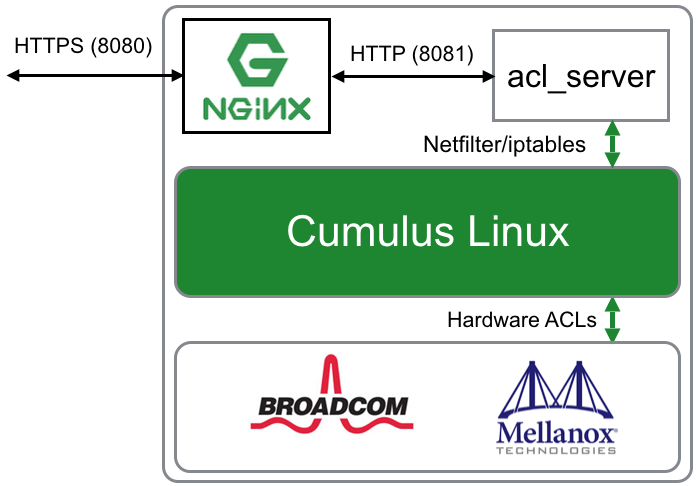

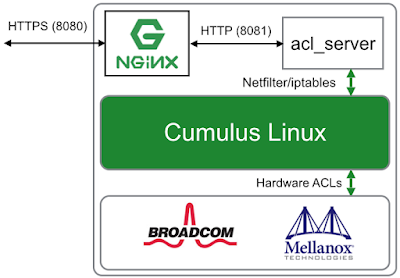

The diagram above shows how the Cumulus Linux 3.4 HTTP API can be extended to include the functionality described in REST API for Cumulus Linux ACLs. Fast programmatic control of Cumulus Linux ACLs addresses a number of interesting use cases, including: DDoS mitigation, Elephant flow marking, and Triggered remote packet capture using filtered ERSPAN.

The Github pphaal/acl_server project INSTALL page describes how to install the acl_server daemon and configure the NGINX web server front end for the Cumulus Linux REST API to include the acl_server functions. The integration ensures that the same access controls configured for the REST API apply to the acl_server functions, which appear under the /acl/ path.

The following examples demonstrate the REST API.

Create an ACL

curl -X PUT -H 'Content-Type:application/json' --data '["[iptables]","-A FORWARD --in-interface swp+ -d 10.10.100.10 -p udp --sport 53 -j DROP"]' -k -u 'cumulus:CumulusLinux!' https://10.0.0.52:8080/acl/ddos1

ACLs are sent as a JSON encoded array of strings. Each string will be written as a line in a file stored under /etc/cumulus/acl/policy.d/ - See Cumulus Linux: Netfilter - ACLs. For example, the rule above will be written to the file 50rest-ddos1.rules with the following Continue reading

0

Real-time WiFi heat map

Real-time Wifi-Traffic Heatmap (source code GitHub: cod3monk/showfloor-heatmap) displays real-time WiFi traffic from SC17 (The International Conference for High Performance Computing, Networking, Storage and Analysis, November 12-17, 2017). Click on the link to see live data.

The Cisco Wireless access points in the conference network don't currently support sFlow, however, the access points are connected to Juniper EX switches which stream sFlow telemetry to an instance of sFlow-RT analytics software that provides real-time usage metrics for the heat map.

Wireless describes the additional visibility delivered by sFlow capable wireless access points, including: air time, channel, retransmissions, receive / transmit speeds, power, signal to noise ratio, etc. With sFlow enabled wireless access points, additional information could be layered on the heat map. The sFlow.org web site lists network products and vendors that support the sFlow standard.

0

Arista EOS CloudVision

Arista EOS® CloudVision® provides a centralized point of visibility, configuration and control for Arista devices. The CloudVision controller is available as a virtual machine or physical appliance.


Fabric Visibility on Arista EOS Central describes how to use industry standard sFlow instrumentation in Arista switches to deliver real-time flow analytics. This article describes the steps needed to integrate flow analytics into CloudVision.

Log into the CloudVision node and run the following cvp_install_fabricview.sh script as root:

#!/bin/sh
# Install Fabric View on CloudVision Portal (CVP)

VER=`wget -qO - http://inmon.com/products/sFlow-RT/latest.txt`
wget http://www.inmon.com/products/sFlow-RT/sflow-rt-$VER.noarch.rpm
rpm --nodeps -ivh sflow-rt-$VER.noarch.rpm
/usr/local/sflow-rt/get-app.sh sflow-rt fabric-view

ln -s /cvpi/jdk/bin/java /usr/bin/java

sed -i '/^# http.hostname=/s/^# //' /usr/local/sflow-rt/conf.d/sflow-rt.conf
echo "http.html.redirect=./app/fabric-view/html/" >> /usr/local/sflow-rt/conf.d/sflow-rt.conf

cat <<EOT > /etc/nginx/conf.d/locations/sflow-rt.https.conf
location /sflow-rt/ {
  auth_request /aeris/auth;
  proxy_buffering off;
  proxy_set_header X-Forwarded-For \$proxy_add_x_forwarded_for;
  proxy_set_header X-Forwarded-Prefix /sflow-rt/;
  proxy_set_header Host \$host;
  proxy_pass http://localhost:8008/;
  proxy_redirect ~^http://[^/]+(/.+)\$ /sflow-rt\$1;
}
EOT

systemctl restart nginx.service

firewall-cmd --zone public --add-port=6343/udp --permanent
firewall-cmd --reload

systemctl enable sflow-rt.service
systemctl start sflow-rt.service

wget http://www.inmon.com/products/sFlow-RT/cvp-eapi-topology.py
chmod +x cvp-eapi-topology.py

echo "configure and run cvp-eapi-topology.py"

Edit the cvp-api-topology.py script to Continue reading

0

Real-time visibility and control of campus networks

Many of the examples on this blog describe network visibility driven control of data center networks. However, campus networks face many similar challenges and the availability of industry standard sFlow telemetry and RESTful control APIs in campus switches make it possible to apply feedback control.

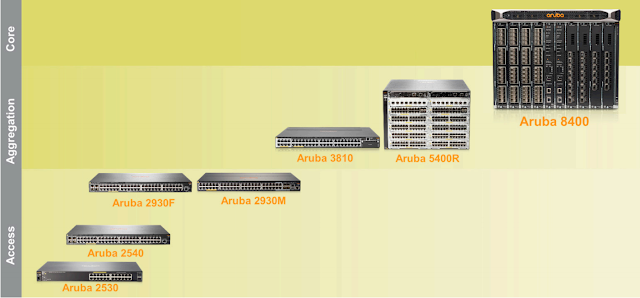

HPE Aruba has an extensive selection of campus switches that combine programmatic control via a REST API with hardware sFlow support:

• Aruba 2530
• Aruba 2540
• Aruba 2620
• Aruba 2930F
• Aruba 2930M
• Aruba 3810
• Aruba 5400R
• Aruba 8400

 This article presents an example of implementing quota controls using HPE Aruba switches.
Typically, a small number of hosts are responsible for the majority of traffic on the network: identifying those hosts, and applying controls to their traffic to prevent them from unfairly dominating, ensures fair access to all users.

Peer-to-peer protocols (P2P) pose some unique challenges:

• P2P protocols make use of very large numbers of connections in order to quickly transfer data. The large number of connections allows a P2P user to obtain a disproportionate amount of network bandwidth; even a small number of P2P users (less than 0.5% of users) can consume over 90% of the network bandwidth.
• P2P protocols (and users) are very good Continue reading

0

Flow Trend

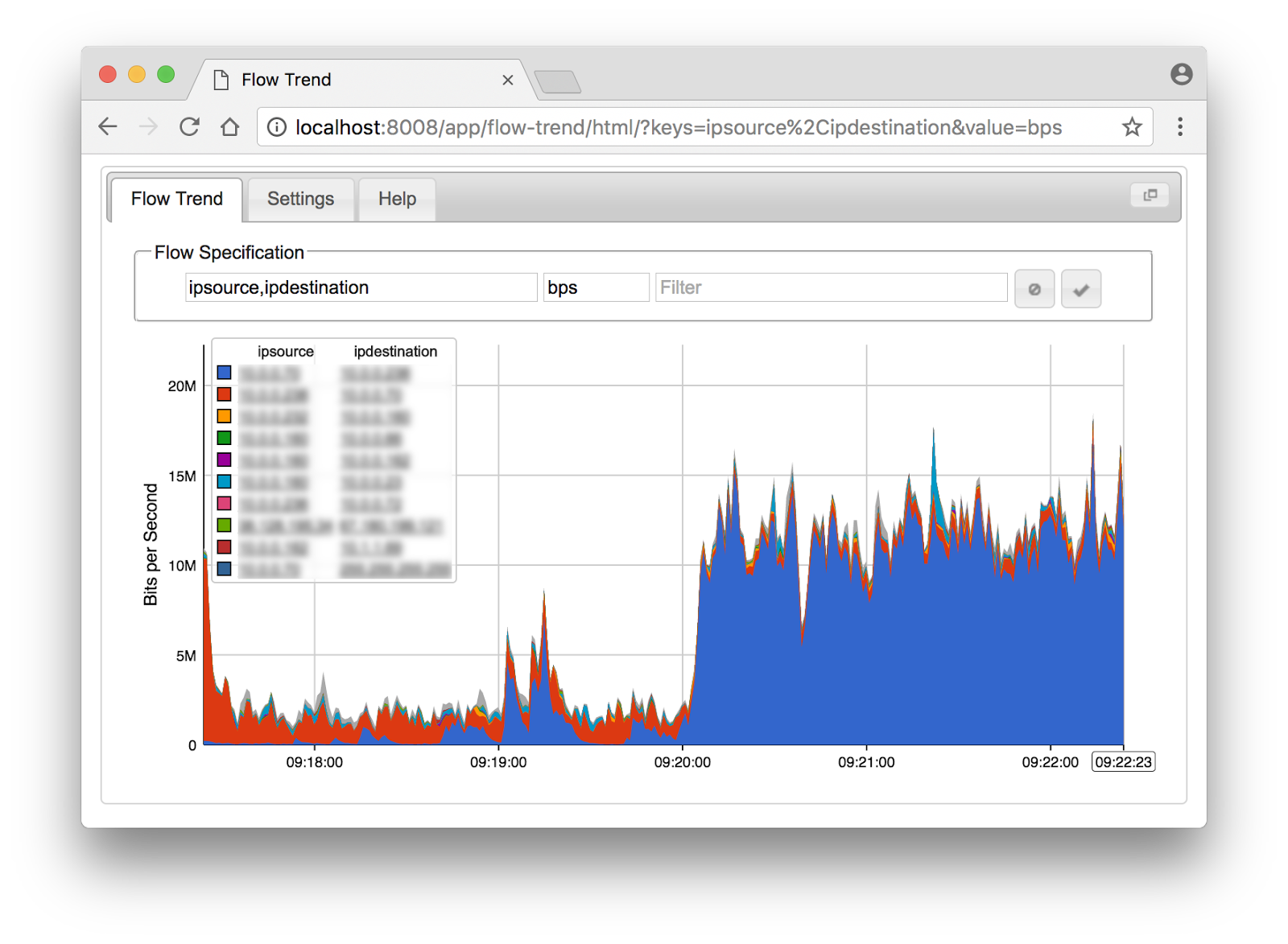

The open source sflow-rt/flow-trend project displays a real-time trend chart of network traffic that updates every second. Defining Flows describes how to break out traffic by different traffic attributes, including: addresses, ports, VLANs, protocols, countries, DNS names, etc.

docker run -p 6343:6343/udp -p 8008:8008 sflow/flow-trend

The simplest way to run the software is using the docker. Configure network devices to send standard sFlow telemetry to Flow Trend. Access the web user interface on port 8008.

0

Real-time traffic visualization using Netflix Vizceral

The open source sflow-rt/vizceral project demonstrates how real-time sFlow network telemetry can be presented using Netflix Vizceral. The central dot represents the Internet (all non-local addresses). The surrounding dots represents addresses grouped into sites, data centers, buildings etc. The animated particle flows represent packet flows with colors indicating packet type: TCP/UDP shown in blue, ICMP shown in yellow, and all other traffic in red.
Click on a node to zoom in to show packets flowing up and down the protocol stack. Press the ESC key to unzoom.

The simplest way to run the software is to use the pre-built Docker image:

docker run -p 6343:6343/udp -p 8008:8008 sflow/vizceral

The Docker image also contains demo data based on Netflix's public cloud infrastructure:

docker run -e "RTPROP=-Dviz.demo=yes" -p 8008:8008 sflow/vizceral

In this case, the detailed view shows messages flowing between microservices running in the Amazon public cloud. Similar visibility could be obtained by deploying Host sFlow agents with associated modules for web and application servers and modifying sflow/vizceral to present the application transaction flows. In private data centers, sFlow support in load balancers  (F5, A10) provides visibility into interactions between application tiers. See Microservices for more information on Continue reading

0

Troubleshooting connectivity problems in leaf and spine fabrics

Introducing data center fabric, the next-generation Facebook data center network describes the benefits of moving to a leaf and spine network architecture. The diagram shows how the leaf and spine architecture creates many paths between each pair of hosts. Multiple paths increase available bandwidth and resilience against the loss of a link or a switch. While most networks don't have the scale requirements of Facebook, smaller scale leaf and spine designs deliver high bandwidth, low latency, networking to support cloud workloads (e.g. vSphere, OpenStack, Docker, Hadoop, etc.).

Unlike traditional hierarchical network designs, where a small number of links can be monitored to provide visibility, a leaf and spine network has no special links or switches where running CLI commands or attaching a probe would provide visibility. Even if it were possible to attach probes, the effective bandwidth of a leaf and spine network can be as high as a Petabit/second, well beyond the capabilities of current generation monitoring tools.

Fortunately, industry standard sFlow monitoring technology is built into the commodity switch hardware used to build leaf and spine networks. Enabling sFlow telemetry on all the switches in the network provides centralized, real-time, visibility into network traffic.
Fabric View Continue reading

0

Cumulus Linux 3.4 REST API

The latest Cumulus Linux 3.4 release include a REST API. This article will demonstrate how the REST API can be used to automatically deploy traffic controls based on real-time sFlow telemetry. DDoS mitigation with Cumulus Linux describes how sFlow-RT can detect Distributed Denial of Service (DDoS) attacks in real-time and deploy automated controls.

The following ddos.js script is modified to use the REST API to send Network Command Line Utility - NCLU commands to add and remove ACLs, see Installing and Managing ACL Rules with NCLU:

var user = "cumulus";
var password = "CumulusLinux!";
var thresh = 10000;
var block_minutes = 1;

setFlow('udp_target',{keys:'ipdestination,udpsourceport',value:'frames'});

setThreshold('attack',{metric:'udp_target', value:thresh, byFlow:true, timeout:10});

function restCmds(agent,cmds) {
  for(var i = 0; i < cmds.length; i++) {
    let msg = {cmd:cmds[i]};
    http("https://"+agent+":8080/nclu/v1/rpc",
         "post","application/json",JSON.stringify(msg),user,password);
  }
}

var controls = {};
var id = 0;
setEventHandler(function(evt) {
  var key = evt.agent + ',' + evt.flowKey;
  if(controls[key]) return;

  var ifname = metric(evt.agent,evt.dataSource+".ifname")[0].metricValue;
  if(!ifname) return;

  var now = (new Date()).getTime();
  var name = 'ddos'+id++;
  var [ip,port] = evt.flowKey.split(',');
  var cmds = [
    'add acl ipv4 '+name+' drop udp source-ip any source-port '+port+' dest-ip '+ip+' dest-port any',
     Continue reading

0

Linux 4.11 kernel extends packet sampling support

Linux 4.11 on Linux Kernel Newbies describes the features added in the April 30, 2017 release. Of particular interest is the new netlink sampling channel:

Introduce psample, a general way for kernel modules to sample packets, without being tied to any specific subsystem. This netlink channel can be used by tc, iptables, etc. and allow to standardize packet sampling in the kernel commit

The psample netlink channel delivers sampled packet headers along with associated metadata from the Linux kernel to user space. The psample fields map directly into sFlow Version 5 sampled_header export structures:

0

Arista eAPI

The sFlow and eAPI features of EOS (Extensible Operating System) are standard across the full range of Arista Networks switches. This article demonstrates how the real-time visibility provided by sFlow telemetry can be combined with the programmatic control of eAPI to automatically adapt the network to changing traffic conditions.

In the diagram, the sFlow-RT analytics engine receives streaming sFlow telemetry, provides real-time network-wide visibility, and automatically applies controls using eAPI to optimize forwarding, block denial of service attacks, or capture suspicious traffic.

Arista eAPI 101 describes the JSON RPC interface for programmatic control of Arista switches. The following eapi.js script shows how eAPI requests can be made using sFlow-RT's JavaScript API:

function runCmds(proto, agent, usr, pwd, cmds) {
  var req = {
    jsonrpc:'2.0',id:'sflowrt',method:'runCmds',
    params:{version:1,cmds:cmds,format:'json'}
  };
  var url = (proto || 'http')+'://'+agent+'/command-api';
  var resp = http(url,'post','application/json',JSON.stringify(req),usr,pwd);
  if(!resp) throw "no response";
  resp = JSON.parse(resp);
  if(resp.error) throw resp.error.message;
  return resp.result;
}

The following test.js script demonstrates the eAPI functionality with a basic show request:

include('eapi.js');
var result = runCmds('http','10.0.0.90','admin','arista',['show hostname']);
logInfo(JSON.stringify(result));

Starting sFlow-RT:

env "RTPROP=-Dscript.file=test.js" ./start.sh

Running the script generates the following output:

2017-07-10T14:00:06-0700  Continue reading
